2005 Nautor Swan 45 Boat for Sale in Split
Split, Croatiasur le marché depuis 14 jours
Prix sur demande
BY
Bach Yachting
Cette annonce est la vôtre ? Revendiquez-la avec Yatzo PRO ou signalez-la.
À propos
Boat Description
The Swan 45 is a one design racer-cruiser, designed by Germán Frers. This 45-foot yacht combines performance with comfort, timeless design, high-quality materials, and excellent sailing capabilities. She still has everything it takes to be competitive in IRC/ORC Classes. Fully equipped with various sails! Lots of renewals between 2020 and 2024. Registered under Croatian (EU) flag, VAT paid.
Layout
2 cabins
2 heads
Engine
Volvo Penta D2-55 diesel engine
53 HP power
Yacht Specifications
General
Construction Material: Grp
Engine: Volvo D2-55, 39 kW, 53 Hp
Tanks: Fuel 210 l, Water 320 l
Electrical System: Dc 12 V : Ac 220 V
Designer: Germán Frers
Delivered: 2005
Flag: Croatia
Classification: Category A
Dimensions
Length Overall: M 13.83 / Feet 45.37
Length Of Waterline: M 12.07 / Ft 39.60
Beam: M 3.92 / Ft 12.83
Draft: M 2.80 / Ft 9.19
Displacement: Kg 9,500 / Lbs 20,940
Ballast: Kg 4,310 / Lbs 9,500
Hull
Glass / vinylester laminate with carbon reinforcements
Sandwich topsides and single skin bottom
Fiber reinforcements are multiaxial or unidirectional.
Structural bulkheads are of veneered sandwich construction of marine grade waterproof plywood.
Bottom stiffeners reinforced with unidirectional carbon and multiaxial grassfire in selected areas.
GRP engine beds.
Topsides finished in white gelcoat
Cove and boot top stripes in dark blue gel coat.
Composite mast step with movable shoe.
Stainless chainplate deck fittings
Bottom is faired and finished with Durepox, fine sanding to 800 grit.
Keel
Antimony alloyed lead bulb and fin with upper flange recessed into hull.
Fin bolted to hull with high tensile steel bolts.
Keel is faired to Zero Tolerance with template control
400 Kgs weight adjustment by 8x removable lead pigs
Steering System & Rudder
Foam filled rudder with carbon/epoxy stock.
Aluminium quadrant.
Vectran cable steering with roller bearing sheaves.
Composite pedestal integrated with cockpit sole.
Alloy 1600mm recessed steering wheel 0.9 turns H.O. to H.O.
Elkhide leather on wheel
Alloy emergency tiller
Deck
General
Advanced laminate sandwich deck with unidirectional skins and low density closed cell foam core.
Teak laid side decks, cockpit seats and floor glued and vacuum bagged
Coachroof and coaming non-skid repainted in 2022
Gas bottles in port side locker
Deck Equipment
Stainless steel pushpit, pulpit and stanchions 600 mm high life lines
30 mm high teak toe rails forward of mast.
Composite mast collar.
Headstay attachment on stemhead.
Folding eyes for harness attachment in cockpit
Removable anchor windlass on foredeck
Deck Canvas
Mainsail cover
Sprayhood
Wheel cover
Sheet/halyard storage bags in cockpit
Hatches & Ports
Cockpit hatch for steering system access.
1 Saloon overhead hatch — converted to magic wheel inhauler system
1 Foredeck hatch Lewmar size 60
1 Ventilation hatch in fwd head Lewmar size 03
4 Fixed coaming windows
4 openable coaming portlights - in aft cabin, aft head, galley and navigation area
1 portlight from aft cabin to cockpit
1 hatch for gas bottle locker
Anchor stowage hatch
Tinted acrylic main companionway sliding hatch with custom drop down washboard
Winches
Primary 2 x Lewmar 60/3 ACR
Mainsheet 2 x Lewmar 50 STOR
Halyards 2 x Lewmar 48 STOR-SR
Sail Handling Systems
Harken aluminium jib sheet tracks
Harken aluminium main sheet track
Harken halyard lead blocks
Harken foot blocks for genoa
Spinlock clutches
Interior (Two-Cabin Version)
General
Floorboards of sandwich construction with laid teak surfaces
Lightweight overhead paneling
Varnished bulkheads and topsides in forward and aft cabins
Teak bulkheads and topsides in main cabin
Lee cloths for berths in cabins and main cabin
White cotton upholstery with dark blue piping in saloon
Forward Cabin
Double berth
Hanging locker
Foam mattresses over Scandi-Flex battens
Reading lights for each berth
Forward Head
GRP moulding to half height
Water tap, shower, mirror
Seawater flushing WC
Integrated shower
Aft Cabin (Port Side Aft)
Double lower berth
Lower berth supported by scandi-flex battens
Lockers under lower berth
Hanging Locker
Reading lights for each berth
Aft Head (Starboard Side)
GRP moulding to half height
Water tap, shower, mirror
Seawater flushing WC
Integrated shower
Hanging Locker
Reading lights for each berth
Galley
Gimbaled three burner stove with oven and stainless steel protection bar
Two stainless steel sinks with Oras mixer tap
Drawers and lockers
Front loading 70 litre refrigerator
Top loading 60-litre cool box
Garbage bin

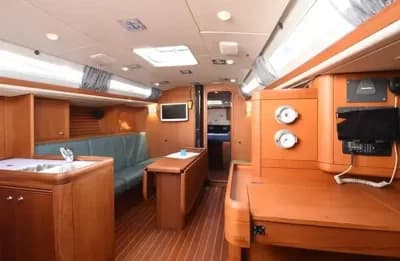

Saloon
Folding leaf table with fiddles
Lockers outboard both sides
Settee backs lift to form pilot berths both sides
Nav Station
Forward facing chart table with seat
Chart stowage under table top
Drawers under table
Oilskin locker
Engine
Volvo Penta Marine diesel D2-55, 39 kW, 53 HP at 3.000 RPM
Saildrive and 2-blade Flex-O-Fold racing propeller
Aluminium 150 ltr fuel tank plus additional 60 ltr fuel tank, total capacity 210L
Engine box removable for access
Engine remote start in cockpit
Plumbing & Ventilation
Composite Flowtech sea cocks for all through hull fittings below waterline
Water and fuel tank level indicators
Aluminium 320 ltr water tank in three interconnected compartments
Hot and cold pressurized water with backup foot pump
Level indicator for holding tank
Deck air inlet for engine area.
Exhaust outlet through transom with extractor
Seawater foot pump in galley
Drainage System
Two manual bilge pumps and 1 electric bilge pump
Whale gulper pumps for sump tanks in each head
2x Jabsco marine WC
60 ltr holding tank for forward WC "Y" valve in forward head
Electronic Systems
12 V DC electrical system with insulated return
Gelcell, 12 V 240 Ah battery bank for general service in vented box under saloon table
12 V 46 Ah engine starter batteries in service battery box
Mast foot, shrouds and stays grounded on the keel
12 V DC refrigeration
DC System
12 V DC Main electric control panel at chart table
12 V outlet at navigation and in cockpit
One reading light above each berth
Recessed halogen dome lights overhead
Flexible chart light and red night light at navigation station
Separate main entrance light
Switches for headlights and masthead light in cockpit
Navigation Lights
AC System
Shore power supply 220 V, 25 A with 15m cable
Chargers/Inverters
Battery charger Mass 12/80
130 A service alternator with 3-way regulator and 60 A alternator for starting battery
Sailing Instruments
Raymarine
Steering compass mounted on pedestal
Communications Systems
VHF SIMRAD RD68 with flush mounting
Entertainment Systems
Sony AM/FM/CD stereo system
Interior and exterior speakers
Mast & Rigging
Hall Spars carbon fiber two spreader mast, 15/16 fractional rig, spreaders swept 20 degrees.
Carbon fiber boom & spreaders all clear coated
Carbon fiber Hall Spars double taper spinnaker pole, track and tackle on mast
Inner forestay with tuff luff for racing
Harken furling headstay for cruising
German mainsheet system
Discontinuous shrouds Navtec rod.
Deck turnbuckles Series 800
Combined mainsail luff groove and track system
Custom inhauler system
12:1 Car puller system with custom cam cleat in cockpit coaming
2 x Navtec 2 speed, hydraulic panels in cockpit controlling backstay and outhaul
24" hydraulic cylinder for the backstay
Quick release for backstay
Windex with light at mast head, 2 coaxial cables
General Equipment
Engine Spares
Swimming ladder
Boathook
Winch handle holders
Winch Handles
Flagpole
Fenders
Safety Equipment
Fire Extinguishers
Fixed CO2 fire extinguisher in Engine compartment with release handle in companionway
Sails
Racing
North 3Di Main, (ENDURANCE 760 19,600 Dpi) Year 2020
J0, (Code 55 NPL code Xi Xi06 CD 78 sq met. Furling) Year 2020
J2, (JIB 2 Medium 3DI Carbon) Year 2019
J3, (NPL Sport Xi Carbon NLX122AC v2, 52,95 sq met.) Year 2023
J4, (NPL Tour Xi Grey NorLam Xi 14 Grey GRC Year 2021
A 1.5, (Asymetric Super Lite/Kote SK 60 CTDR 183,41 sq met.) Year 2021
A4, 2022
Storm Trysail, (15,8 sq met orange) Year 2021
Storm Jib, Year 2021
Cruising
MAIN (DACRON)
ROLL JIB (DACRON/PENTEX)
Work List from 2020 to 2024
New upgraded Raymarine instruments with i70s multifunction colour display
New depth, speed transducer
New 21 square meters of teak deck and cockpit
New painting of the Hull
New antifouling (Yotun hard racing 2024)
New Gennaker Pole in carbon 1.5m - 2020
New Rod Headstay - 2022
New Tuff Luff (Harken)
New Halyards (5 pcs 10 & 12mm)
NDT test using PT methods for Shrouds
Overhauling Volvo Engine - 2023
Overhauling Hydraulic system - 2023
Overhauling anchor winch - 2022
Overhauled Auto Pilot - 2023
New Propeller - 2023
New Fresh water pump - 2023
New Sea water pump - 2023
New Alternator DRB
New Battery with transmitter battery pack 1 pcs - 2022
New S-A Roller bearing 172mm on rudder - 2023
Replaced all 6 plugs - 2023
Repainted engine - 2023
New gas cooker - 2023
Repainted whole boat under gratings - 2023
Revarnish all interior and gratings - 2023
New lights - 2021
New curtains - 2021
One new toilet - 2021
New speakers 80W - 2022
New anchor with 50 m chain + rope – 2020
The Swan 45 is a one design racer-cruiser, designed by Germán Frers. This 45-foot yacht combines performance with comfort, timeless design, high-quality materials, and excellent sailing capabilities. She still has everything it takes to be competitive in IRC/ORC Classes. Fully equipped with various sails! Lots of renewals between 2020 and 2024. Registered under Croatian (EU) flag, VAT paid.
Layout
2 cabins
2 heads
Engine
Volvo Penta D2-55 diesel engine
53 HP power
Yacht Specifications
General
Construction Material: Grp
Engine: Volvo D2-55, 39 kW, 53 Hp
Tanks: Fuel 210 l, Water 320 l
Electrical System: Dc 12 V : Ac 220 V
Designer: Germán Frers
Delivered: 2005
Flag: Croatia
Classification: Category A
Dimensions
Length Overall: M 13.83 / Feet 45.37
Length Of Waterline: M 12.07 / Ft 39.60
Beam: M 3.92 / Ft 12.83
Draft: M 2.80 / Ft 9.19
Displacement: Kg 9,500 / Lbs 20,940
Ballast: Kg 4,310 / Lbs 9,500
Hull
Glass / vinylester laminate with carbon reinforcements
Sandwich topsides and single skin bottom
Fiber reinforcements are multiaxial or unidirectional.
Structural bulkheads are of veneered sandwich construction of marine grade waterproof plywood.
Bottom stiffeners reinforced with unidirectional carbon and multiaxial grassfire in selected areas.
GRP engine beds.
Topsides finished in white gelcoat
Cove and boot top stripes in dark blue gel coat.
Composite mast step with movable shoe.
Stainless chainplate deck fittings
Bottom is faired and finished with Durepox, fine sanding to 800 grit.
Keel
Antimony alloyed lead bulb and fin with upper flange recessed into hull.
Fin bolted to hull with high tensile steel bolts.
Keel is faired to Zero Tolerance with template control
400 Kgs weight adjustment by 8x removable lead pigs
Steering System & Rudder
Foam filled rudder with carbon/epoxy stock.
Aluminium quadrant.
Vectran cable steering with roller bearing sheaves.
Composite pedestal integrated with cockpit sole.
Alloy 1600mm recessed steering wheel 0.9 turns H.O. to H.O.
Elkhide leather on wheel
Alloy emergency tiller
Deck
General
Advanced laminate sandwich deck with unidirectional skins and low density closed cell foam core.
Teak laid side decks, cockpit seats and floor glued and vacuum bagged
Coachroof and coaming non-skid repainted in 2022
Gas bottles in port side locker
Deck Equipment
Stainless steel pushpit, pulpit and stanchions 600 mm high life lines
30 mm high teak toe rails forward of mast.
Composite mast collar.
Headstay attachment on stemhead.
Folding eyes for harness attachment in cockpit
Removable anchor windlass on foredeck
Deck Canvas
Mainsail cover
Sprayhood
Wheel cover
Sheet/halyard storage bags in cockpit
Hatches & Ports
Cockpit hatch for steering system access.
1 Saloon overhead hatch — converted to magic wheel inhauler system
1 Foredeck hatch Lewmar size 60
1 Ventilation hatch in fwd head Lewmar size 03
4 Fixed coaming windows
4 openable coaming portlights - in aft cabin, aft head, galley and navigation area
1 portlight from aft cabin to cockpit
1 hatch for gas bottle locker
Anchor stowage hatch
Tinted acrylic main companionway sliding hatch with custom drop down washboard
Winches
Primary 2 x Lewmar 60/3 ACR
Mainsheet 2 x Lewmar 50 STOR
Halyards 2 x Lewmar 48 STOR-SR
Sail Handling Systems
Harken aluminium jib sheet tracks
Harken aluminium main sheet track
Harken halyard lead blocks
Harken foot blocks for genoa
Spinlock clutches
Interior (Two-Cabin Version)
General
Floorboards of sandwich construction with laid teak surfaces
Lightweight overhead paneling
Varnished bulkheads and topsides in forward and aft cabins
Teak bulkheads and topsides in main cabin
Lee cloths for berths in cabins and main cabin
White cotton upholstery with dark blue piping in saloon
Forward Cabin
Double berth
Hanging locker
Foam mattresses over Scandi-Flex battens
Reading lights for each berth
Forward Head
GRP moulding to half height
Water tap, shower, mirror
Seawater flushing WC
Integrated shower
Aft Cabin (Port Side Aft)
Double lower berth
Lower berth supported by scandi-flex battens
Lockers under lower berth
Hanging Locker
Reading lights for each berth
Aft Head (Starboard Side)
GRP moulding to half height
Water tap, shower, mirror
Seawater flushing WC
Integrated shower
Hanging Locker
Reading lights for each berth
Galley
Gimbaled three burner stove with oven and stainless steel protection bar
Two stainless steel sinks with Oras mixer tap
Drawers and lockers
Front loading 70 litre refrigerator
Top loading 60-litre cool box
Garbage bin
Saloon
Folding leaf table with fiddles
Lockers outboard both sides
Settee backs lift to form pilot berths both sides
Nav Station
Forward facing chart table with seat
Chart stowage under table top
Drawers under table
Oilskin locker
Engine
Volvo Penta Marine diesel D2-55, 39 kW, 53 HP at 3.000 RPM
Saildrive and 2-blade Flex-O-Fold racing propeller
Aluminium 150 ltr fuel tank plus additional 60 ltr fuel tank, total capacity 210L
Engine box removable for access
Engine remote start in cockpit
Plumbing & Ventilation
Composite Flowtech sea cocks for all through hull fittings below waterline
Water and fuel tank level indicators
Aluminium 320 ltr water tank in three interconnected compartments
Hot and cold pressurized water with backup foot pump
Level indicator for holding tank
Deck air inlet for engine area.
Exhaust outlet through transom with extractor
Seawater foot pump in galley
Drainage System
Two manual bilge pumps and 1 electric bilge pump
Whale gulper pumps for sump tanks in each head
2x Jabsco marine WC
60 ltr holding tank for forward WC "Y" valve in forward head
Electronic Systems
12 V DC electrical system with insulated return
Gelcell, 12 V 240 Ah battery bank for general service in vented box under saloon table
12 V 46 Ah engine starter batteries in service battery box
Mast foot, shrouds and stays grounded on the keel
12 V DC refrigeration
DC System
12 V DC Main electric control panel at chart table
12 V outlet at navigation and in cockpit
One reading light above each berth
Recessed halogen dome lights overhead
Flexible chart light and red night light at navigation station
Separate main entrance light
Switches for headlights and masthead light in cockpit
Navigation Lights
AC System
Shore power supply 220 V, 25 A with 15m cable
Chargers/Inverters
Battery charger Mass 12/80
130 A service alternator with 3-way regulator and 60 A alternator for starting battery
Sailing Instruments
Raymarine
Steering compass mounted on pedestal
Communications Systems
VHF SIMRAD RD68 with flush mounting
Entertainment Systems
Sony AM/FM/CD stereo system
Interior and exterior speakers
Mast & Rigging
Hall Spars carbon fiber two spreader mast, 15/16 fractional rig, spreaders swept 20 degrees.
Carbon fiber boom & spreaders all clear coated
Carbon fiber Hall Spars double taper spinnaker pole, track and tackle on mast
Inner forestay with tuff luff for racing
Harken furling headstay for cruising
German mainsheet system
Discontinuous shrouds Navtec rod.
Deck turnbuckles Series 800
Combined mainsail luff groove and track system
Custom inhauler system
12:1 Car puller system with custom cam cleat in cockpit coaming
2 x Navtec 2 speed, hydraulic panels in cockpit controlling backstay and outhaul
24" hydraulic cylinder for the backstay
Quick release for backstay
Windex with light at mast head, 2 coaxial cables
General Equipment
Engine Spares
Swimming ladder
Boathook
Winch handle holders
Winch Handles
Flagpole
Fenders
Safety Equipment
Fire Extinguishers
Fixed CO2 fire extinguisher in Engine compartment with release handle in companionway
Sails
Racing
North 3Di Main, (ENDURANCE 760 19,600 Dpi) Year 2020
J0, (Code 55 NPL code Xi Xi06 CD 78 sq met. Furling) Year 2020
J2, (JIB 2 Medium 3DI Carbon) Year 2019
J3, (NPL Sport Xi Carbon NLX122AC v2, 52,95 sq met.) Year 2023
J4, (NPL Tour Xi Grey NorLam Xi 14 Grey GRC Year 2021
A 1.5, (Asymetric Super Lite/Kote SK 60 CTDR 183,41 sq met.) Year 2021
A4, 2022
Storm Trysail, (15,8 sq met orange) Year 2021
Storm Jib, Year 2021
Cruising
MAIN (DACRON)
ROLL JIB (DACRON/PENTEX)
Work List from 2020 to 2024
New upgraded Raymarine instruments with i70s multifunction colour display
New depth, speed transducer
New 21 square meters of teak deck and cockpit
New painting of the Hull
New antifouling (Yotun hard racing 2024)
New Gennaker Pole in carbon 1.5m - 2020
New Rod Headstay - 2022
New Tuff Luff (Harken)
New Halyards (5 pcs 10 & 12mm)
NDT test using PT methods for Shrouds
Overhauling Volvo Engine - 2023
Overhauling Hydraulic system - 2023
Overhauling anchor winch - 2022
Overhauled Auto Pilot - 2023
New Propeller - 2023
New Fresh water pump - 2023
New Sea water pump - 2023
New Alternator DRB
New Battery with transmitter battery pack 1 pcs - 2022
New S-A Roller bearing 172mm on rudder - 2023
Replaced all 6 plugs - 2023
Repainted engine - 2023
New gas cooker - 2023
Repainted whole boat under gratings - 2023
Revarnish all interior and gratings - 2023
New lights - 2021
New curtains - 2021
One new toilet - 2021
New speakers 80W - 2022
New anchor with 50 m chain + rope – 2020
