Boat Description

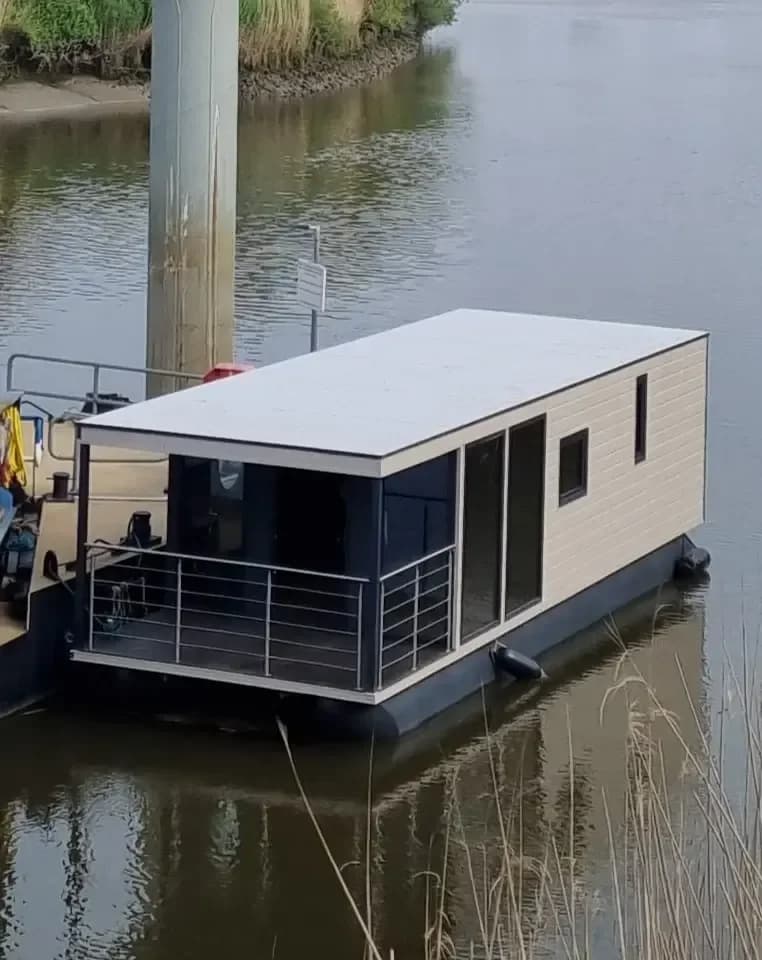

The DIY 11.27m features a living area of 26 m² and a terrace area of 7 m² + 2.5 m².

Construction Details

Tread elements – polyethylene float dn 1000mm (2 rows), firmly connected to the structure from below.
Welded structure made of hot-dip galvanized steel profiles.
Includes an under-bow terrace with balustrade.
Includes an under-technical terrace with balustrade.
Technical cabinet facade - outer PVC kerra front panels.
PVC double-glazed windows, flush with the façade.
Entrance door in the rear and door in the front with patent lock.
Bedrooms and bathroom feature tilt-and-turn windows, round-tilt windows with external sealing flange.


Deck and Roof Details

Lower and upper deck based on waterproof formwork panel.
Protected by heat, moisture, and sound insulation with polystyrene foam and vapour-proof foil.
Surface of the upper terrace protected by rainproofing.
Bituminous sealing of the waterproof formwork panel.
Roof surface protection with PVC technology.


Wall and Ceiling Specifications

Exterior walls of utility rooms thermally, moisture-proof, and acoustically damped with polystyrene.
Vapour-proof foil on the inside and vapour-permeable membrane with self-adhesive insulation foam (under the façade) on the outside.
Walls (including partition walls) filled with Styrodur and clad with waterproof formwork board.
Ceilings made of waterproof formwork panel.


Electrical and Sanitary Facilities

Electrical installation in the form of cables laid up to the walls.
Sanitary facilities with connection to bathroom and kitchenette, including:


860 liter water tank.

860 liter sanitary tank.

Connection to the air conditioning system.
No roof terrace.
