Total length 15.40 mHull length: 14.85 mLength at waterline 13.54 mWidth: 4.75 mDraft 2.38 mDisplacement approx. 14.0 tBallast approx. 4,000 kgEngine: 53 kW/72 hpWater tank approx. 650 lFuel tank: approx.: 300 lCE Certificate: A (ocean).No. Cabins: 4No. Berths: 7No. Bathrooms/Heads: 2Mast length above waterline approx. 22.10 m.Sailing rig:Total area approx. 129 m.Grotto approx. 67.50 m.Automatic staysail: approx. 51.5 m.Rigging: 119.55 m, J 5.85 m, R 18.35 m, E. 6. 15 mDesign: judel / Vrolijk & co. Interior. Hanse Yachts Design

Private boat, never used in charter! Only one owner since new.

FrameCase whitedouble dark grey waterlineoptions: case color options according to the Hanse color paletteisophthalic gelcoatsandwich (Balsa) above the waterlineInternal laminate bonded with polyester (orthophtalic or DCPD) the main bulkhead is laminated to the hull and deckGRP reinforcement throughout the bodyhorizontal portholes in the hull

Deck:white deck with anti-slip padisophthalic gelcoat vinylester top layerInternal laminate bonded with polyester (orthophtalic or DCPD)Sandwich construction (Balsa)

Steering systemdual control system2 steering wheels in leather braidrudder balancer cushion with self-aligning needle bearingEmergency tiller

Keelstandard T-shaped, iron keel, draft 2.38 mkeel fastening: stainless steel bolts through

Deck equipmentTeak on the cockpit deck. Teak flooring on the cockpit floor, partially molded non-slip coating on the cabin roof and along the deck edgesengine control at the steering console on the starboard side4 retractable mooring cleatsSelf-standing anchor locker with electric windlass on deck Fixed anchor sleeve with anchor roller, integrated teak step and socket for genakerStainless steel cockpit table with teak top and plotter bracketSail storage locker with ladder on forepeak with large hatchaft shower (cold and hot)self-draining cockpithalyard storage boxes in cockpitstorage space for gas cylinders, self-draining, in the garage compartmentstainless steel bathing ladderDesignated space for life raftOutboard swim platform with integrated automatic jib control, fully deck mountedSelf-contained jib track, fully integrated into the bowboom guy with 2 vertical blocks2 x 5 Deck Rope/Organization Kit10 deck stoppers6 sockets for gennaker, staysail13 deck hatches2 opening portholes4 opening side windows on the roof of the wheelhouseStainless steel stern rail with LED navigation lights and flagpole socketstainless steel bow pulpit with LED navigation lightsstainless steel conical postsgates in a fence4 winches in cockpit, 2x main 55 AST EVO, 2x auxiliary 55 AST EVO

Technical systems / Water supply / Fresh water tankfresh water tanks, capacity about 650 l (2 tanks)the neck for the water inlet on the deckHot water20L engine driven boiler and immersion 230V

Bilge pumps. Bilge pumps1 manual bilge pump1 electric bilge pumps with automatic switch

Latrine/Showers2 pumpable marine toilets2 tanks 35 A with drain into the sea and for pumping through a neck on the deck for each toilet

EngineVolvo D2 75 /53 kW / 72 HP, diesel, "Sail drive" mechanism, 3-blade propeller, fixed2 diesel tanks, total capacity about 300 lDeck filler neck, diesel filter/water separatorSoundproofing and lighting of the engine compartment with space (optional) for the generator above the engine

Electrical system12V and 110V/230V Country Version Europe / AustraliaBattery packsmain battery switchStarter battery 12V/90Ahservice battery 2 x 12V/2x165ACharger / Shore Power230V shore power socket with residual current circuit breaker and 12V/50Amp charger supply systemElectrical panel 110V/230Vbreakercontrol sensorsvoltmeterElectrical panel 12Vswitches for the entire electrical system on board (upgraded instrument panel)voltmeterwater/fuel wastewater flow meter12V electrical equipmentElectric windlass, pumps, LED navigation lights, interior lighting, refrigerator230 V socketsat the chart table, in the forward cabin (one each), in the aft cabin (one each), in the galley (double), in the saloon (double), in the heads (one each)12V socketsat the chart table, at the steering consoleInterior lightingoverhead lighting in cabins, saloon, galley and headslighting in the engine compartmentreading lights in the salon and in the cabinNInternal lighting in the aisle

Navigation lightsLED navigation lights on bow and stern pulpit, LED running lights, LED anchor lights

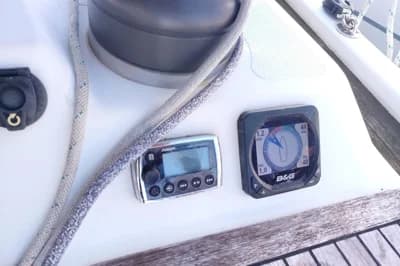

Navigation instrumentsB&G Triton multi-function display on steering pedestal includes triducer (speed, depth, temperature)2 illuminated compasses at the steering consoleecho sounder and log

Galleydurable worktop, black quartz with integrated double sink3-burner LPG stove with oven and gimbalhoodLPG gas system2 bottle storage spaces in garage compartmentDouble compartment refrigerator, capacity about 140 zCabinets and drawerstrash can

Internal structure, interiorsFinished in high quality marine plywood, mahogany style, satin polish, maple wood option cherry wood easy Italian oak, satin polish and mahogany stylewhite bulkheadswooden door frameswooden/sandwich doorsMaple wood flooring that opens in sections.UpholsteryForespoke cabinlayout A1 sail storage area on the forepeak with gangway and large hatch

Bow cabinLayout B1: Owner's cabin with island bed, spacious hanging cabinets and drawers, separate toilet and separate shower, 2 reading lamps, mirror.

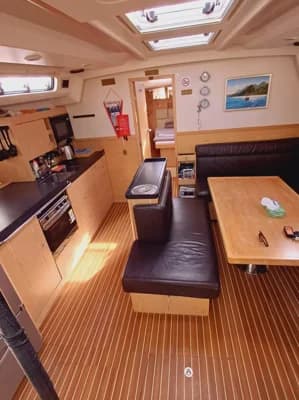

Salonlayout C1, large table in the salon, cabinets,1-size sofa on the starboard side, with a fixed table for storing winespacious kitchen along the hull on the left sidemultifunctional central part, with TV lift, with storage space and double seat, shelves and cabinets along the body, 2 reading lamps on the bulkheadOptions within the Hanse Individual Cabin Concepttable in the saloon, 2 hatches, 4 portholes in the upper part of the wheelhouseOn the left side there is a multifunctional storage room next to the kitchen. Under the deck there is space for storing canistersChart tablecabinet near the chart table with a table for tools and booksspace for mounting electronics230 V/12 V socket, storage space in chart tableLighting, storage cabinet near the chart table with shelves

Aft cabinLayout D12 double aft cabins with storage space

Latrine/showersseparate toilet and separate shower in the forward cabintoilet and shower in aft cabin with pump toiletsink with mixerelectric drain pumpmirrorcabinet and shelvesopening hatch

Standing and running rigginganodized, silver plated mast, with 2 levels of spreaders, tapered boom track with 2 vertical blockscruising sail setgrotto on through battensautomatic jibboom with 2 lines of ribbingFurling system for jib below deckmainsail halyardfalse starboardthe scotch stuckboom backstay

Additional equipment:Connection piece between Bimini & SprayhoodBoom brake 1 pcLeather upholstery 'Portofino' (Chocolate)Teak on side decksTeak on coachroof & halyard lidsSun bed cushions on coachroof according to colour selection light GreyGangway, folding, 220 cm, with bagFridge unit for cockpit table XC3003 810,

The yacht is registered under the Malesyan flag. EU VAT NOT PAID.

Upholstery

Storage room

Crew cabin

Owner's fwd cabin

Saloon

2 aft cabins

Batteries

Battery charger/Shore power

Electric control panel 110V/230V

Electric control panel 12V

12V electric equipment

Outlets 230V

Outlets 12V

Interior lighting

Navigation lights

Navigation instruments
