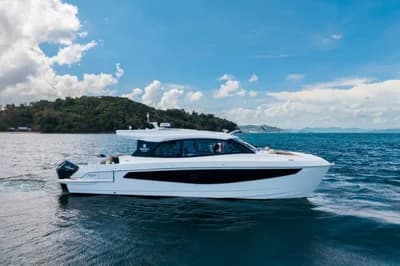

AQUILA 42 COUPE POWER CATAMARAN Specifications
Features
• An exceptional performing and seaworthy double
stepped hull shape providing first in class stability
and fuel efficiency
• Aquila Hydro Glide carbon fiber semi foiling system
providing first in class performance, comfort, and
fuel efficiency
• The perfect balance of indoor and outdoor spaces,
all in a single level living package
• Spacious interior cabins with hull side windows
offering excellent views of the water
• Expansive electric opening fiberglass sunroof
providing protection from sun and weather (option)
• C-Zone digital switching system for DC powered
components
• Ability to choose between Mercury outboard
power or Volvo Penta diesel propulsion
• Easy access on and off from docks with standard
port and starboard opening cockpit doors
Interior Layout
• Single level deck plan with large cabins in each
hull
• Master cabin in port hull with VIP cabin in
starboard hull - each with walk in shower, vanity
area, and fresh water flush toilet
• Salon area with L-shaped seating to port with
fixed table that can convert to bed with fill in
cushion
• Large tempered glass windows offering full 360
degree views
• Sliding aft salon door providing a connection
between aft cockpit and interior when opened
• Galley area to starboard providing microwave, sink,
and storage cabinets throughout
• Carbon fiber central electric actuated hatch/door
providing access to forward bow seating
• Comfortable helm seating for two with forward
facing port side lounger adjacent to the helm
seating
Hull and Deck Features
• Double stepped hull design offering best in class
offshore handling capabilities
• Carbon fiber Aquila Hydro Glide semi-foiling
system
• Comfortable and protected bow seating that
comfortably seats up to 4 people
• Aft starboard fiberglass storage box including
trash can and Corian surface with ability to add
optional fridge
• Aft convertible sun lounger providing ability to sit
facing forward or convert to sun lounger with
storage below
• Designated area for optional electric BBQ
• Stainless steel railings and handholds in AIS316
• Opening port lights installed in hull side windows
• PVC rub rail with 316 stainless steel insert offering
all round protection
• Windscreen in tempered glass with variable speed
windscreen wiper
• Bow deck hatches allowing access to anchor
chain area and windlass
• Deck fill plates in 316 stainless steel - 1x water - 2x
fuel - 2 x waste
• Stainless steel mooring cleats thru bolted (10 Total)
• Well placed ergonomic handrails in 316 stainless
ensuring secure movement onboard
• LED navigation lights, running lights and anchoring
light
• Custom stainless steel retractable swim ladder
with teak steps at aft deck swim platform
• Aft cockpit and bow area all self draining
• Aft cockpit with three panel sliding door
• Optional synthetic marine decking throughout all
main level exterior and interior deck space
• Mechanical room/diesel engine access through
large deck hatches
• LED courtesy lighting located throughout
• Easy lift gas shocks for all large hatches
Aft Deck and Cockpit
• Multiple panel sliding door lockable from interior
and exterior - entrance to salon
• Sun lounger with convertible back rest and
storage inside
• Forward facing seating to port
• Fiberglass aft storage to starboard with pull out
trash can and optional fridge
• Flip down/up fiberglass engine well covers
• Mechanical/diesel engine room access from deck
hatches
• Marine waterproof 7.7” Fusion speakers (2)
• Port and starboard side boarding gates with robust
stainless steel hinge and fittings
• LED courtesy lighting
• Overhead LED lighting
• Starboard side storage aft of sliding door with
optional BBQ and fridge/freezer
• Integrated side deck steps providing easy access
to raised side decks
• Stainless steel gates (2) at center and starboard
side
• Optional retractable canvas sunshade system
with canvas material
• Self draining cockpit area
• Shore power inlet supply outlets
• Slide out stainless steel swim ladder with teak
steps
• Fresh water pull out shower (hot/cold)

Mooring System
• Electric windlass (12v-1000W) with hard wired
handheld control at anchor locker
• Polished stainless steel 35lbs anchor with rope
(200ft), galvanized anchor chain (30ft)
• Mooring kit - 6 x fenders and 6 x mooring lines
Forward Bow Seating
• Central electric walkthrough opening hatch/door
manufactured in carbon fiber materials to increase
strength and reduce weight providing access to
bow seating
• Forward facing sun lounger seating with head
rests and flip down arm rests
• Cup holders (8)
• Concealed storage areas to outboard sides for cell
phone and cup holders
• Integrated LED courtesy lighting
• Storage under removable cushions at each sun
lounger
• Marine waterproof speakers 7.7” (2)
• Stainless steel handrails
• Optional synthetic marine decking
• Central hatch for access to windlass/anchoring
system
• Port and starboard side wet locker storage for
fenders and mooring lines
Interior Helm Console / Seating
• Comfortable carbon fiber helm seating including
flip up bolsters and electric seat sliders
• Cup holders (2)
• AC vents for direct air flow (aircon optional)
• Black acrylic helm panel with flush mount
electronics installation
• Wireless phone charger (1)
• Stainless steel hand hold
• Recessed foot rests
• Manual slide opening window next to helm
• Variable position steering wheel offering multiple
function use controls at your finger tips
• Magnetic handheld compass
• USB and USB-C outlets
• Port side forward facing lounger seating adjacent
to helm seating
• Windshield wiper system connected to fresh
water supply with control at helm
• Ergonomically positioned throttle and joystick
controls
Salon / Galley
• Manual blinds for port and starboard side
windows
• Laminate finished cabinetry with solid wood
capping throughout with accented wall and ceiling
coverings
• Manual hi/low table with fold out sections - can
convert to sleeping area with fill in cushion
• Multi-Zone sound system with Fusion head unit
and 4 x flush mounted 7.7” speakers
• Upholstered panel ceilings with decorative LED
accent lighting
• Comfortable L-shaped seating to port
• Storage locker under floor in galley/salon area
• Optional expansive electric sunroof
• Designated drop down TV system from ceiling
(option)
• Carbon monoxide alarm
AC power sockets under seating
• Galley area to port side including:
• Corian work surface
• 130L/4.5 cu. ft. fridge/freezer
• 30L/1.1 cu. ft. microwave
• Storage drawers and cabinets throughout
• Wash basin with stainless steel faucet
• AC power outlets
• Integrated stainless steel handrails under Corian
countertops
• Optional synthetic marine decking
Owner and VIP Guest Cabin
(owner cabin on port side)
• Large hull side window providing natural light into
cabin with manual operated blinds
• Laminate finished cabinetry with solid wood capping
throughout with accented wall and ceiling
coverings
• Private access door to each cabin for privacy
• Aircon vents with aircon display/controller (option)
• Opening ventilation hatch in ceiling with concealed
manual blind
• LED reading lights (2)
• LED overhead ceiling lights
• Storage shelves, lockers and drawers with additional
storage under cabin mattress
• Memory foam mattress
• Cabin mattress size: Master cabin: 76” x 60”
(194cm x 153cm) VIP guest cabin:76” x 60” (194cm
x 153cm)
• USB charging ports
• Synthetic wear resistant flooring offering
maintenance free natural look
• Upholstered panel ceilings with decorative LED
accent lighting
• Carbon monoxide alarm in each cabin
• AC power sockets (2)
• Large hanging locker with storage
• Separate bathroom/shower area including:
• Hull side window with blind
• Opening portlight window for ventilation
• Bathroom vanity with sink and faucet
• GFCI protected outlets
• Toothbrush and towel holders
• Corian countertop
• Fresh water electric flushing toilet
• Walk in shower with door and port light
opening window
• Mirror
Mechanical / Diesel Engine Rooms
(diesel engines optional)
• Automatic fire suppression heat activated system
with alarm monitors at helm station
• Engine fuel system filters
• LED lighting
• Thru hulls with strainers for water supply to
primary equipment
• Automatic bilge pump in each engine room
• Excellent all around engine and systems access
for ease of maintenance
• Additional storage for storing water toys and water
sports equipment
Electrical System
• C-Zone DC digital switching system
• Inverter/battery charger Mastervolt 200A/3500W
• Master control panel for 12v and shore power service
• Dedicated engine battery chargers
• Remote battery master switches at panel
• Engine parallel control remote switch
• Dedicated engine start batteries (2 x AGM)
• House batteries = 2 x 230 A/h AGM
• 30A shore power supply inlets (2)
• Galvanic Isolator protection system
Fuel System
• Fully independent Heavy Gauge aluminum tanks
totaling 1552 Liter/410 US G with gauge at helm
station
• Manual fuel shut off valves
• Fuel tank vents
• Natural ventilation of locker
• Water and air tight bulkhead separating cabin area
• Fuel filters

Water and Bilge System
• Automatic 12v Fresh Water Pump
• Water heater (1) @ 40L/10.5Gal (only operable from
shore power and/or optional generator)
• 1 x 200 Liter/52 US G fresh water tank
• Transom pull out shower mixer (hot/cold)
• Automatic 12v bilge pumps (6)
Waste System
• Automatic grey water pump connected to each
shower drain for direct overboard discharge
• 2 x 80L/21Gal black water tanks with sea
discharge pumps and dockside pump out
• Black and fresh water levels visible through
C-Zone system
