JOHNSON 110 FLYBRIDGE M/Y w/ON-DECK MASTER 2022 (New Construction) New build project. Hull and deck are completed in the molds and waiting for Buyer's choice of customization. Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 14 months depending on other yard projects. ** OPTIONS UPON REQUEST ** ** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE ** COMMENT Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
I. HULL & DECK
MAIN DECK-TEAK 14MM HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE) STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN VERTICAL ELECTRIC ANCHOR WINCHES x 2 MAXWELL VWC6000C/HYD:
VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS: 2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL 1 x BAND BRAKE 1 x CHAIN ROLLER STOPPER TENSIONER 1 x HAND HELD REMOTE CONTROL
AFT DECK MOORING CAPSTAN x 2 SETS MAXWELL VC2200W/D:
VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS: 1 x FOOT SWITCH W/COVER 1 X 80 AMP BREAKER PANEL 1 x REVERSING SOLENOID PACKS, 24VDC
STAINLESS STEEL 250 LB ANCHOR x 2 HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2:
LEFT: 300 FEET (5/8”) RIGHT: 300 FEET (5/8”)
FRESH WATER ANCHOR CHAIN WASH DOWN HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS S/S FLAGPOLE ON BOW RAIL HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS BLACK TEMPERED SAFETY GLASS (EXCEPT 5 WINDOWS IN FRONT OF PILOT HOUSE) STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND PORT LIGHTS ON DECK HOUSE BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM:
SSISTOWAWAY SHOWER UNIT WHITE x 1

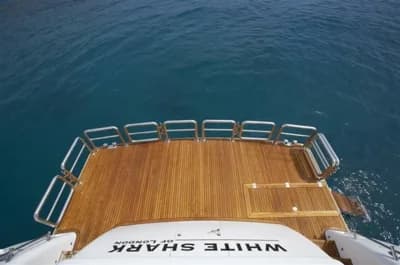

LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2 FRP STORAGE CABINET ABOVE RUDDER IN THE LAZARETTE ANTI-FOULING BOTTOM PAINT:
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
SINGLE BOOT STRIPE COLOR: BLACK S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RA LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2 EXTERIOR STEP LIGHTS:
IMTRA KODIAK BLUE LED S/S 24V
RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK:
SCANDVIK 10187 S/S
AFT DECK REFRIGERATOR:
U-LINE WH95TP-20 110V/60HZ
DECK WASHDOWN, SALT WATER:
FLOJETL WATER PUMP 24V W/NaOZZLE x 1
HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS LIFTING CAPACITY LADDER, SIDE RAILS + SUN PADS ON MASTER COACH ROOF WATER FILL DECK FITTING X 1 DIESEL FILL DECK FITTING X 4
II. FLYBRIDGE
MAIN DECK - TEAK 14MM FRP RADAR ARCH, MAST, AND WINGS MANUAL HIGH-LOW TEAK TABLE WITH COMPASS INLAY x 2 TEAK TREAD STAIRWAY FROM AFT DECK TO FLYBRIDGE WITH HAND RAILS AND LED STEP LIGHTS AIR HORN:
BUELL S/S AIR HORN COMPRISING: 1 XV TANK MOUNTED COMPRESSOR 1 X 1062 12” STROMBOS AIR HORN 1 X 1063 15” STROMBOS AIR HORN 1 X 1064 18” STROMBOS AIR HORN
CUSTOM WALK BEHIND WET BAR:
REFRIGERATOR/ICEMAKER: U-LINE CO29BTP-20 110V/60 HZ FAUCET: GROHE SINK 3 X BAR STOOLS GRANITE TOP
FRP SETTEE WITH REMOVABLE CUSHIONS, STORAGE BELOW AND COVER S/S FLAG STAFF ON REAR OF FLYBRIDGE HELM SEAT:
PORT SIDE: AIRTEX HELM SEAT X 2
HIGH QUALITY ARITEX S/S GAS BBQ S/S HATCH ON F/B DECK STEP OPENING OVERSIZE DRAINS W/STRAINERS AT EACH CORNER OF FLY BRIDGE DECK WITH INTERNAL OVERBOARD DRAINS CUSTOM LIFERAFT BRACKET ON THE OUTBOARD X 2 (LIFERAFTS OWNER SUPPLIED) SEARCH LIGHT,DUAL STATION:
ACR RCL-100 24V
CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN:
GPSMAP® 8215 FULLY-INTERGRATED MULTI-TOUCH MFD x 2 GMI 20 MARINE INSTRUMENT DISPLAY x 1 GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1 GARMIN VHF 200 MARINE RADIO x 1 GARMIN AIS 600 CLASS B TRANSCEIVER x 1 GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1 GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1
II. RAYMARINE:
RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2 RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1 RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1 RAYMARINE RAY218E VHF RADIO x 1 RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1 RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT X 1 RAYMARINE CP100 DOWNVISION FISHFINDER X 1
STABILIZER CONTROL AND MONITORING DISPLAY BOW & STERN THRUSTER CONTROL PANEL CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH RUDDER INDICATOR DANFORTH 5” MAGNETIC COMPASS FUEL GAUGE HEADHUNTER TS-3000 SERIES ACRYLIC DEFLECTING WIND SCREEN FUSION STEREO SYSTEM, FLYBRIDGE, AFT DECK:
MS-AV700I DVD / RECEIVER – WITH FUSION LINK MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
DROP DOWN TV CABINET W/ 32” LCD TV APPLE TV LOW LEVEL COURTESY LED LIGHTS 24V INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED:
AQUA-SIGNAL ONE SET (5) #55 MASTHEAD LIGHT 24V #55 STARBOARD LIGHT 24V #55 PORT LIGHT 24V #55 STERN LIGHT 24V #55 ALL-ROUNG LIGHT 24V
SIDE AND AFT BRIDGE RAIL STAINLESS STEEL S/S GRAB RAIL AROUND BAR UNIT INDIRECT LED LIGHTING UNDER WET BAR AND SEATING OVERHEAD LED LIGHTS INTERLOCKING HEADLINER
III. ENGINE PROPULSION & STEERING SYSTEM
ENGINE:
CAT C-32 ACERT 1925 HP X 2 GEARBOX ZF2070A MARINE GEAR RATIO 2.467: 1 x 2
SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACKUP SYSTEM:
FIXED STATIONS x 1 AT F/B; REMOTE CONTROL STATION x 1 IN THE AFT DECK PORT SIDE
ENGINE FUEL FILTERS:
RACOR 75/1000MAX2 W/ALARM x 2
GENERATOR FUEL FILTERS: RACOR 75/500MAX2 W/ALARM x 2 S/S SHAFTS: AQUATECH 22 HIGH STRENGTH DIAMETER 4” x 2 HIGH PERFORMANCE 5–BLADE PROPELLERS:
HUNG SHEN NIBRAL PROPS x 2
MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS:
TIDES MARINE RUDDER SEAL DIAMETER 3-1/2” & SHAFT SEAL DIAMETER 4”
HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES:
PSCDUAL STATION W/COOLING WATER FLOW DETECTOR
SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CON AND WATER MAKER SEA COCKS ON ALL UNDERWATER FITTINGS S/S EMERGENCY TILLER S/S RUDDERS: DIAMETER 3-1/2” HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM:
EXALTO 24V X 4
BOW AND STERN THRUSTERS WITH CENTRAL HYDRAULIC SYSTEM "AT REST" STABILIZER SYSTEM STEERING WHEELS AT P/H & F/B: S/S 22” DIAMETER x 2 UNDERWATER EXHAUST W/ BYPASS
IV. ENGINE ROOM EQUIPMENT
WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDA-CORE DECK PLATES VAN CAPPELLEN CONSULTANCY DESIGN SOUND INSULATED MATERIALS WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE E/R AC LED LIGHTS & DC LED DOME LIGHTS ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR:
DELTA “T” BLOWERS WITH 600-P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN /8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS /8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS
AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN:
SEA-FIRE FM-200 24V SEA-FIRE FIRE DETECTION & MONITORING SYSTEM THROUGHOUT THE BOAT
ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP:
HEADHUNTER XRVDC x 1 HEADHUNTER M5-230 MACH 5 230VAC x 2
CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM:
CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL AIR COMPRESSOR: TWC72DC (72000 BTU) x 3 AIR HANDLER: SALOON: 24000 BTU/HR x 3 GALLEY: 12000 BTU/HR x 1 MASTER CABIN: 18000 BTU/HR x 2 MASTER BATHROOM: 12000 BTU/HR x 1 HALLWAY: 6000 BTU/HR x 1 VIP CABIN/BATHROOM: 18000 BTU/HR x 1 PORT GUEST CABIN/BATHROOM: 12000 BTU/HR x 1 STBD AFT GUEST CABIN/BATHROOM: 12000 /HR x 1 PORT AFT GUEST CABIN/BATHROOM: 12000 /HR x 1 FLY BRIDGE: 24000 BTU/HR x 2 OFFICE/LOWER HELM: 24000 BTU/HR x 1 CAPTAIN CABIN: 9000 BTU/HR x 1 CREW CABIN: 6000 BTU/HR x 1 CREW GALLEY: 12000 BTU/HR x 1
723 GAL ALUMINIUM FUEL TANK x 2 1,180 GAL FRP FUEL TANK x 1 1,355 GAL FRP FUEL TANK x 1
OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES
REVERSO OP-704 24V x 1
HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW MANUAL BILGE PUMP:
HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1
FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER:
TUTHILL FR2410C 24V 1/4HP x 2 TUTHILL 901-1 x 2
S/S COVER OUTSIDE ENGINE EXHAUST FRESH-WATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN ENGINE ROOM:
BASIN: LP-7000 x 1 TAP: SCANDVIK 10477 COMPACT MIXER WHITE x 1 SHOWER DRAIN: RULE 98 800GHP 24V x 1
WATER MAKER:
SEA RECOVERY 1400GPD(ONE) COMPLETE PREFILTER, OIL/WATER SEPARATOR, CARBON FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER
WORK BENCH OVER THE ENGINE x 2
V. ELECTRICAL SYSTEM
110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM:
GLENDINNING CABLE MASTER CM-8 100AMP 24V WITH 120’ CABLE x 2 SETS GLENDINNING RADIO REMOTE CONTROLTRANSMITTERS) x 1 SET
INVERTERS:
MASTERVOLT MASS COMBI 24/x 1
COLOR-CODED WIRING FOR EASY IDENTIFICATION GENERATORS:
ONAN MARINE DIESEL GENERATORS 55KW 1 PHASE,(60HZ); 110V/220V 60HZ x 2 INCLUDING STANDARD EQUIPMENT(CONTROL PANEL): SOUND SHIELD, WET EXHAUST MUFFLER, GAS/WATER SEPARATOR
AUTOMATIC BATTERY CHARGER:
DOLPHIN 80 AMP 24V 115-230V 50/60HZ x 2 FOR SERVICE BATTERIES PROTECH 12V 30AMP x 1 FOR GENERATOR BATTERIES
BATTERY SWITCH (VAPOR PROOF):
BEP 701-MDO x 3
225 AMP/HR GEL CELL SEALED BATTERIES FOR SERVICE/ENGINES/GENSETS:
SERVICE LIFELINE GPL-8DL 255AMP x 4 ENGINE LIFELINE GPL-8DL 255AMP x 4 GENSETS LIFELINE GPL-8DL 255AMP x 2
ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS MAIN ELECTRIC PANEL INCLUDES AC AND DC CIRCUIT BREAKERS 24 VOLT DC MONITORING AND MAIN CIRCUIT BREAKERS AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING ENGINE ROOM GFI PROTECTION FOR AC REQUIRED OUTLETS:
VIMAR 16511.16B 120V~60HZ
AUTOMATIC ISOLATION & BOOSTING TRANSFORMER:
CHARLES 93-ISOBOST 100 AMP x 2
INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS, PILOTHOUSE, HAND RAILS AND GALLEY COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2” COPPER STRAP AND HULL ANODES SHORE TELEPHONE INLET: HUBBELL PH6594TV x 1
VI. PLUMBING SYSTEM
FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR WASTE TREATMENT SYSTEM IN E/R:
HEADHUNTER TW-HMXGPD
SUMP PUMPS FOR SHOWERS:
RULE 12 24V/2000GPH x 3
BILGE PUMPS:
RULE 16A 24V/3700GPH x 7
FLOAT SWITCH:
LOW-SUREBAIL 382251 x 6 HIGH-SUREBAIL 382251 x 9
MARINE GRADE LINES FOR FRESH WATER SYSTEM WATER HEATERS W/HOT WATER CIRCULATING PUMP:
WATER HEATER: TORRID MV40S 120V 1500W S/S 40 GALLONS x 2 HOT WATER CIRCULATING PUMP: GRUNDFOS UP10-16B5/ATLC 115V/60HZ x 1
634 GAL S/S WATER TANKS W/ HEADHUNTER TS-3001B ELECTRIC WATER GAUGE PRESSURE STORAGE TANKS:
HEADHUNTER AVF-4 4 GAL x 2 GROCO PST-1 1 GAL x 1
MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS, IN BRONZE WITH BALL VALVES HIGH WATER BILGE ALARM SYSTEM - 7 AREAS DOCKSIDE FRESH WATER INLET:
PAR JABSCO x 1
COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION BRONZE INTAKE VALVES (BALL). ALL THRU-HULL FITTINGS ARE BRONZE 2HP AC FIRE PUMP WITH ON-DECK FIRE HOSE BILGE EXHAUST VENTILATION:
PARV 3” FLANGEMOUNT BLOWER
VII. INTERIOR EQUIPMENT
HIGH QUALITY FABRIC SOFAS INTERLOCKING VINYL CEILING PANELS THROUGHOUT HIGH QUALITY DOOR LOCK SETS THROUGHOUT:
HAFELE-SANDRA
TGI LIGHTING SYSTEM THROUGHOUT:
TGI SP0101 (#3) / CHROME TRIM & WHITE COLOR
ITALIAN SWITCH & OUTLETS THROUGHOUT:
VIMAR / CHROME TRIM
CHOICE OF FABRICS FOR BEDDING & CURTAINS INDIRECT LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES IMTRA LED ROPE LIGHTING 24V WARM WHITE INTERIOR STAIRWAYS WITH SAFETY LIGHT SYSTEM:
SEA WORLD 10435WW LED ROPE LIGHTING 24V WARM WHITE
CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT (SPK LEDCAchW24) IN EACH CABIN HIGH QUALITY OF SOUND INSULATION IN WALLS BETWEEN CABINS CENTRAL VACUUM SYSTEM W/ OUTLETS:
NUTONE 110V/60 HZ x 1
OPEN/CLOSE ELECTRIC CURTAIN IN SALOON & MASTER STATEROOMS CHROME COLOR BATHROOM FIXTURE THROUGHOUT FROSTED GLASS FOR SHOWER DOORS PAINTED SOJI SCREEN IN ALL STATEROOMS IN FRONT OF PORTHOLES SALOON:
HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 2 INTERLOCKING VINYL CEILING PANELS THROUGHOUT S/S HIGH POLISH AIR DOOR CUSTOM DESIGN DINING TABLE CUSTOM DESIGN CEILING SOFFIT CUSTOM DESIGN TV CABINET HANGING CLOSET BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM SAMSUNG LCD 47” TV PIONEER BLU-RAY DISC PLAYER APPLE TV
MASTER CABIN:
INTERLOCKING VINYL CEILING PANELS KING SIZE BED CUSTOM DESIGN HEADBOARD CUSTOM STORAGE CABINETS POWER CURTAINS VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1 SIDE SOFA x 1 CEDAR LINED CLOSET REFRIGERATOR: NORCOLD DE-7040 24V READING LIGHTS: QUICK DOMINIQUE 22-35/CHROMED/SHADE LINEN/ B15D LED x 2 SAMSUNG LCD 47” TV PIONEER BLU-RAY DISC PLAYER APPLE TV FUSION STEREO SYSTEM MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
FWD VIP CABIN:
INTERLOCKING VINYL CEILING PANELS QUEEN SIZE BED CUSTOM DESIGN HEADBOARD AND CEILING CUSTOM STORAGE CABINETS VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1 CEDAR LINED CLOSET READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2 SAMSUNG LCD 32” TV APPLE TV FUSION STEREO SYSTEM MS-AV600G DVD / RECEIVER – WITH FUSION LINK. MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
AFT VIP CABIN:
INTERLOCKING VINYL CEILING PANELS QUEEN SIZE BED CUSTOM DESIGN HEADBOARD AND CEILING CUSTOM STORAGE CABINETS VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1 CEDAR LINED CLOSET READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2 SAMSUNG LCD 32” TV APPLE TV FUSION STEREO SYSTEM MS-AV600G DVD / RECEIVER – WITH FUSION LINK. MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
PORT GUEST CABIN:
INTERLOCKING VINYL CEILING PANELS QUEEN SIZE BED, OUTBOARD CUSTOM DESIGN HEADBOARD AND CEILING CUSTOM STORAGE CABINETS CEDAR LINED CLOSET READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2 SAMSUNG LCD 32” TV APPLE TV FUSION STEREO SYSTEM MS-AV600G DVD / RECEIVER – WITH FUSION LINK. MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
STBD GUEST CABIN:
INTERLOCKING VINYL CEILING PANELS TWIN BEDS x 2 CUSTOM DESIGN HEADBOARD AND CEILING CUSTOM STORAGE CABINETS CEDAR LINED CLOSET READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2 SAMSUNG LCD 32” TV APPLE TV FUSION STEREO SYSTEM MS-AV600G DVD / RECEIVER – WITH FUSION LINK. MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
CAPTAIN’S CABIN -PORTSIDE
TEAK & HOLLY FLOORS HANGING LOCKER DOUBLE BED DESK & READING LIGHTS SAMSUNG LCD 24” TV APPLE TV
FUSION STEREO SYSTEM:
MS-AV700I DVD / RECEIVER WITH FUSION LINK MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
CREW QUARTERS STBD SIDE:
TWIN BEDS READING LIGHTS
CREW’S GALLEY:
REFRIGERATOR: U-LINE CO29BTP-20 BLK 110V/60 HZ COOK TOP: SEAWARD SEWV/60HZ MICROWAVE: GE LASTEST MODEL WASHER: GE LASTEST MODEL DRYER: GE LASTEST MODEL 4 PERSON DINETTE AUXILIARY ELECTRICAL PANEL SAMSUNG LCD 24” TV APPLE TV
FUSION STEREO SYSTEM:
MS-AV600G DVD / RECEIVER – WITH FUSION LINK. MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4 MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
ENTERTAINMENT SYSTEM (REFER TO ATTACHED DRAWINGS FOR EQUIPMENT DETAILS)
VIII. GALLEY
TRASH COMPACTOR:
BROAN # 15SSEXF S/S
COOKTOP:
GE LATEST MODEL
DOWNDRAFT VENTILATOR:
GE LATEST MODEL W/ LIGHT
DISHWASHER:
GE LATEST MODEL
OVEN:
GE BUILT IN LATEST MODEL
REFRIGERATOR + FREEZER:
GE LATEST MODELS
MICROWAVE:
GE LATEST MODEL
IX. HEADS
MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS SEAMLESS POLYURETHANE FINISH IN ALL HEADS NON-SLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING SEALAND VACCUM TOILETS SYSTEM IN EACH HEAD EXHAUST FANS IN EACH HEAD/ MANROSE BSL24C/24V MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD SINKS WITH GROHE FAUCETS STALL SHOWER W/ HAND HELD SPRAYS
CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM:
I. GARMIN:
GPSMAP® 8215 FULLY-INTERGRATED MULTI-TOUCH MFD x 2 GMI 20 MARINE INSTRUMENT DISPLAY x 1 GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1 GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1
II. RAYMARINE:
RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2 RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1 RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1 RAYMARINE RAY218E VHF RADIO x 1 RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1 RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT X 1 RAYMARINE CP100 DOWNVISION FISHFINDER x 1
INTERGRADED INSTRUMENT PANEL AT BOTH HELM STATIONS ENGINE CONSOLE WITH ALL GAUGES COMPASS DANFORTH 5” X 1
XI. REMARKS Please note, this is a new build construction project with hull and deck completed in the molds waiting for Buyers choices of customization. Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 14 months depending on other yard projects. ** OPTIONS UPON REQUEST ** ** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE ** Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice. No US Tariff or Duty are included in the price. All Prices are FOB Taiwan.
Disclaimer The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
This 2027 Johnson 110 is listed for sale in Kaohsiung,, Kaohsiung. With a 110ft layout, inboard engine setup and new condition, this boat is suited to buyers looking for power options in this location. View full details, photos and specifications for reference RB610036 on Rightboat.
Details
ManufacturerJohnson
Model110
Year (Build / Refit)2027
Length33.5m
Total Power1925 hp
Beam7.2m
Specifications
Dimensions
Length33.5m
Max Draft2.1m
Beam7.2m
Hull
MaterialGRP
Weight
Displacement105 kg
Accommodation
Guest Cabins5
Berths5
Bathrooms7
Features
Autopilot
Compass
Depth Instrument
GPS
Navigation Lights
Plotter
Radar
VHF
Anchor
Battery
Battery Charger
Bow Thruster
Generator
Gyroscopic Stabilizer
Inverter
Stern Thruster
Windlass
Dishwasher
Freezer
Fridge
Grill
Hob
Microwave
Oven
Watermaker
DVD Player
TV
Bilge Pump
Fire Extinguisher
Propulsion
Engine 1
Engine MakeCaterpillar
Engine ModelC-32 Acert
Drive TypeInboard Direct-Drive
Fuel TypeDiesel
Power1925 hp
