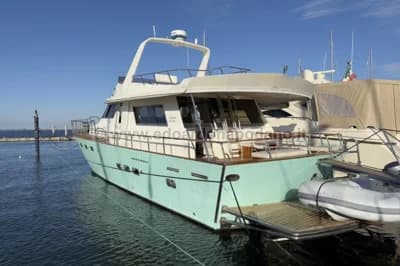

A successful example of both refitting and restoration. To own a classic motoryacht as better than new.
Builder Cantieri di PisaMod. AtlasYear 1973Loa 17 mBeam 5.06 mDraft 1.40 mDispl. 23000KgEngine 2 x Caterpillar 522 hp eachMAX SPEED 30 KNOwner cabin and 2 guests cabins, crew cabin;
The extra equipment consisting of navigation instruments, entertainment systems,air conditioning and heating, desalinator and generators, can be valued at the state in€40,000
Summary of the work carried out on Cantieri Di Pisa model Atlas

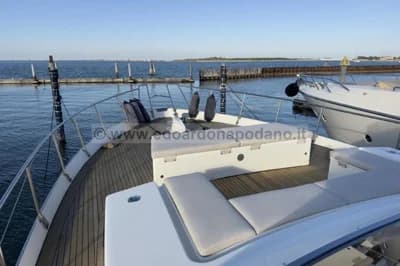

Deck;Dismantling of deck hardware necessary for the work and reassembly after polishing and reassembly of the new stainless steel pulpit replacing the aluminum one.Milling of 6 mm on all deck comments and new re-caulking with Sika 290 and first sanding, improvement of the fastening of the slats with self-tapping screws 3.5×25 on beams and closed with teak plugs.Complete stripping of the external superstructure and sliding doors with the insertion of a new lock with external key closure, transom with a cycle with white epoxy-polyurethane and replacement of the lock with a key, modification according to the request of the bow sunbathing area, partial resin coating of the edges and laying of new teak on the modified part.New white lacquered wooden cabinet at the bow of the modified area with drip tray and water drain and “L” shaped bow sofa with inspection hatches.Maintenance of the pulpit and the bulwark, external bow wall in cut teak wood and solid with glossy painting. Replacement of the window seals and fastening screws replaced with blind bolts instead of self-tapping screws.Restoration of the Fly floor by replacing various rotten floor points then insulated with epoxy cycle and white non-slip. Replacement of the access hatch with pistons for opening. Restoration of the dome with epoxy resin, furniture, side walls and dashboard and hatch with new furniture under the dashboard.New closing cabinet under the dashboard with inspections, hatch and sealed, Reassembly of the plexiglass windshield after polishing with replacement of the screws.Maintenance of the painting of the roll-bar with white epoxy-polyurethane cycle of the fly's under-roof.Creation of 2 cabinets in glossy UV lacquered teak veneer and white lacquered on the upper part mounted at the stern. Maintenance of the engine room hatch by installing a new drip tray made of steel, as on the bow anchor locker, installation of pistons for opening.Maintenance of the painting of the internal perimeter sides with replacement of various damaged sections, especially in the stern area.In the anchor locker replacement of the transverse reinforcement wood at the bow of the winch, resin reinforcement and epoxy protection on the iron tank and maintenance of the wood and steel frame.On the hull sides restoration of the wood with new mahogany panels in the live area, also at the stern and followed by double layer bi-axial resin coating 450 gr/mq in epoxy, epoxy primer and glossy painting.Sealing with neutral silicone for the exterior of the various joints over the entire surface and Sika 290 rubber cord in the elbow between the internal fender and the bulwark over the entire surface.
Hull;Hull bottom treated with epoxy impregnating before the application of antifouling and restoration of a portion of the shaft exit for about 1.3 sqm and reinforced internally.Restoration of the submerged part of the sides for a height of 600×14000 mm with certified Rina marine plywood in mahogany 10+8 mm interlocking and glued with epoxy resin, the same procedure for the transom for 850 mm in height with 8+6 mm thickness with the same procedure as the sides.Replacement of a portion on the right side at the bow of 400×400 mm and on the right and left sides corresponding to the water discharge openings.Dismantling and reassembly of the porthole with restoration of the seals and sealing and hardware after polishing.Sandblasting of the flaps and primer painting with epoxy.
Interiors;Internally in the salon area, removal of the dividing bulkhead and the kitchen, structural reinforcements on the ceiling with beams and stringers, new wooden ceilings and total white and dove gray lacquering. Creation of new furniture and installation of supplied appliances and ceilings and dashboard covering.Maintenance of the sofa in the salon.Anti-mold treatment on the upper part of the ceiling.Installation of new plank flooring in the kitchen area, thresholds of the side doors in raw rubberized teak for non-slip.In the corridor and in the cabins total white and dove gray lacquering, new ceilings over the entire surface.In the bathrooms maintenance of the painting of the floor, new sink cabinet and side in teak finish and white lacquered. New coverings on the bulkheads complete and new arrangement of light points.New risers on the stairs with holes for LED step markers that will then be covered in fabric.Restoration of the support frame of the floorboards in some damaged points.Epoxy treatment on the internal floorboards as well as on the entire bilge accessible from bow to stern.
Engine room;In the engine room restoration of the lateral structure of the extractors and treated in epoxy like all the bilges and sides after sanding where possible, wooden bases of the diesel tanks replaced with new ones before their replacement.Removal of the old insulation.Removal of the old engine air intakes.ENGINES:– Complete revision of cooling lines– Complete regular maintenance– Replacement of the control unit on one engine (provided by the Owner)– Replacement of fuel lines– Installation of a diesel decantation tank– Production of new Risers and engine Mufflers– Replacement of water and gas intake and discharge lines
TRANSMISSIONS:– Revision of propellers, shafts and coupling flanges– Installation of new PSS mechanical seals– Replacement of bushings on brackets and installation of the median lines– Dismantling and reassembly of shaft sleeves, shaft brackets– Revision of gas discharge mouths (welding, sandblasting and painting)
GENERATORS:– Replacement of risers and revision of cooling lines– Complete maintenance– Replacement of water, diesel, gas discharge lines– Installation of resin mufflers with Gas/Water separator
SYSTEMS:– Replacement of diesel lines– Revision of fuel tank shut-off valves– Replacement of necessary fittings on diesel connections– Replacement of stern diesel tanks– Installation of electronic capacitive diesel float
– Refurbishment of the entire fresh water system with HepWorth Hep2O system, shut-off collectors– Replacement of all faucets– Revision of autoclave pumps– Replacement of fresh water discharge lines– Replacement of fresh water, gray water and black water tanks
– Revision of black water pumps and bilge sucker
– Replacement of WC lines with installation of three-way system tank/sea– Replacement of all sea inlets and outlets complete with fittings– Replacement of all discharges, vents and scuppers on the walls complete with fittings– Replacement of general piping
– Installation of fire-fighting system in the engine room

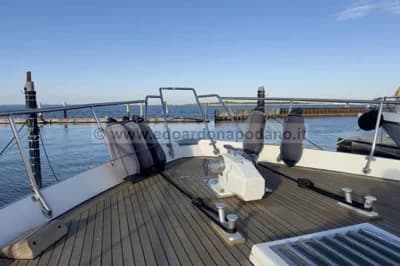

GENERAL WORKS:– Refurbishment of sound-absorbing material in the engine room– Installation of hydraulic passerelle at the stern– Installation of flap angle sensor cables– Installation of internal WCs– Revision of anchor winch– Installation of reinforcement plate under anchor winch
For the detailed list of all the works and supplies carried out, please consult the progressive invoicing documents from the start date of the work.
Some works are missing, including the complete replacement of the control units of the right engine and various finishes.
