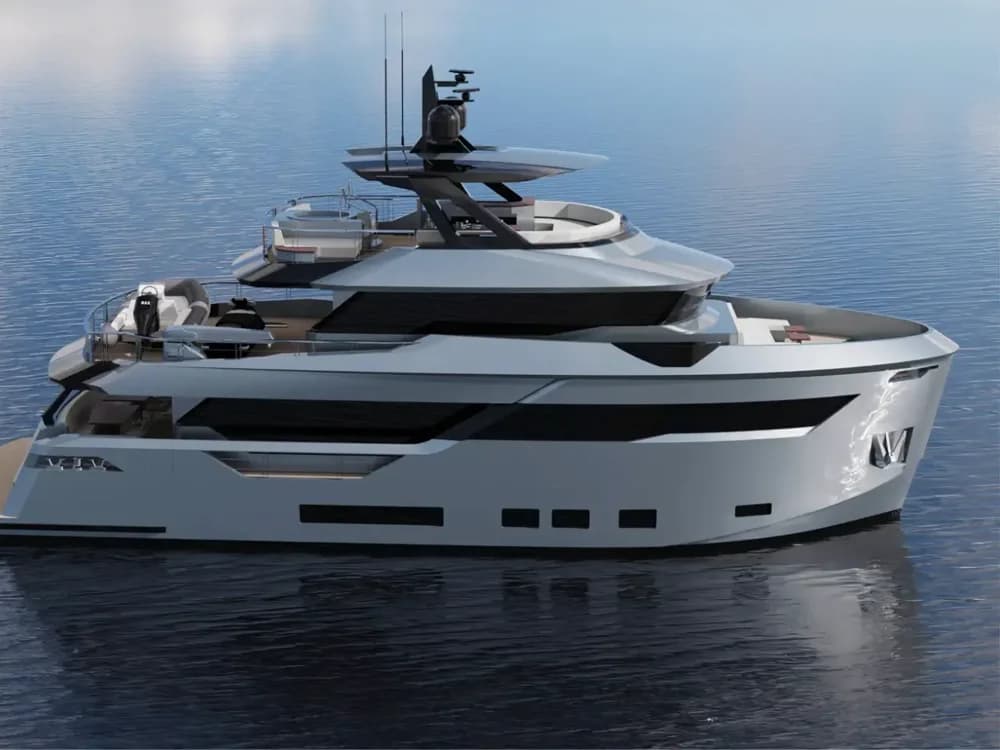

Aes Yacht | 85' AES Yacht 2027 The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure. Twin Cummins give her a trans-Atlantic range while zero speed stabilizers assure comfort both underway and at anchor. A fully bespoke interior by Milan based Hot Lab sleeps 8 guests in 4 cabins including a full beam Master cabin on the main deck, 2x VIP cabin and 1x twin cabins on the lower deck plus accommodations for 4 crew in 2 cabins.
Currently under construction by AES Yacht and nearing completion, this 26m (85'3") is designed for adventure on the high seas. She is built to RINA Unrestricted Navigation & CE Cat A for registration below 24 meters, she boasts a remarkable range of 6,000nm and is equipped with zero-speed stabilisers, ensuring smooth cruising.
Excellent opportunity with a fast delivery date.
Full presentation available upon request. Aes HIGHLIGHTS Yacht Details: 85' AES Yacht 2027 Location: Tuzla, Turkey Engines: 2 x Cummins QSM 11 455.00hp Last Updated: Aug 21, 2026 Asking Price: €9,950,000 Maximum Speed: 11 kn Max Draft: 8' 3" Stock Number: B94558 Aes additional information Specifications Cruising Speed: 8 kn Maximum Speed: 11 kn Beam: 26' 3" Hull Material: Steel Max Draft: 8' 3" Displacement: 0 lb Fuel Tank: 9379 gallon Fresh Water: 940 gallon Holding: 1044 gallon Cabins: 4 Technical Details
Builder: AES Yachts
Year: 2027
Exterior Design: AES Yacht
Interior Design: Hot Lab
Naval Architecture & Engineering: AES Yacht/Endaze Engineering
Length Overall: 26.13 m/85 ft 8 in
Length at Waterline: 22.74 m/74 ft 7 in
Beam: 7.86 m/25 ft 9 in
Max Beam: 8.00 m/26 ft 2 in
Depth: 3.75 m/12 ft 3 in
Gross Tonnage: 235 gt
Hull Material: Steel
Superstructure Material: Aluminum
Class: RINA C HULL ● MACH Y, Unrestricted and CE Cat A
Flag: Malta
Engines: (2) Cummins QSM 11 455 hp
Max Speed: 11 knots
Cruising Speed: 8 knots
Range at Cruising Speed: 6,000 nm
Generators: (2) Kohler 35 kW @1,500 rpm 50 Hz, 400V
Fuel Tank Capacity: 35,500 liters/9,379 gallons
Fresh Water Tank Capacity: 3,558 liters/940 gallons
Sewage Tank Capacity: 3,953 liters/1,044 gallons
Staterooms: 4; sleeps 8 guests
Crew Cabins: 2; sleeps 4 crew
Propulsion & Auxiliary Machinery
ZF Gearbox
F51 Duplex stainless steel shaft
(4) Control stations
Aluminum bronze propeller
Bow Thruster: (1) Sleipner SH550, hydraulic
Stern Thruster: (1) Sleipner SH550, hydraulic
Data hydraulic steering system
Stabilizers: Sleipner, zero speed, vector fin kit 1.95 sqm
Danfoss PTO pumps
Water Makers: 460 liters(121 gallons)/hour total, duplex, Idromar
Idromar fresh water systems
Air Conditioning: Mediterranean Climate - Webasto
Engine Room Inlet & Outlet Fans: (2) Gianneschi
Fuel Filtration: (1) Alfa Laval
Sewage Treatment System: Hamann, HL compact 3,000 liters (792 gallons)/day
Tecma toilet system
Gianneschi pumps
(1) Alfa Laval fuel separator and filters
(1) Atlas Copco compressor
Kahlenberg air horn
Electrical Systems
Electrical Supplies: 230/400V - 50hz
Batteries Starter & Service: Mastervolt or Victron
Service Generator: (2) Kohler 35 kW with Sound Encloser
Shore Power: (1) Glendenning Cable Master
AV & IT Automation System: KNX, ABB
Deck Equipment & Coating
(2) Data hydraulic anchor winches (windlasses)
(2) Data hydraulic mooring winches (capstans)
(2) Data hydraulic anchor & anchor chain
Tender Crane: (1) Opacmare - Loading capacity 1,000 kg
Transformer: (1) Opacmare 5 steps - Lifting capacity 420 kg
Passarelle: (1) Opacmare - Length 5.040 mm
Electrical Sliding Doors: (2) Besenzoni or Makro Yachts
(8) Underwater lights or Oceanled
Awl Grip top coat (topsides & superstucture)
Safety Systems
Sliding Watertight Doors: Winel or equal
Fire Fighting: Fire Pro FP 1200
Fire Detection & Alarm: Tyco T2000 or Consilium
Security (CCTV): Samsung
Navigation & Electronic Equipment
Furuno navigation equipment
Navigation lights
(1) Intellian TV antennas
Network IT system
4G/WiFi system
