PRINCIPAL DIMENSIONS

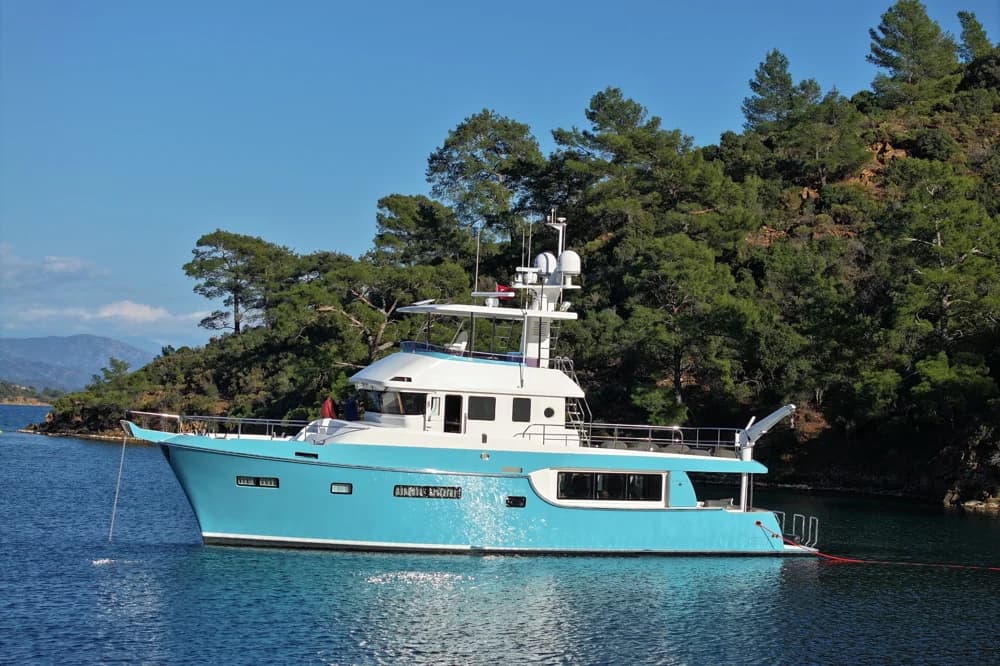

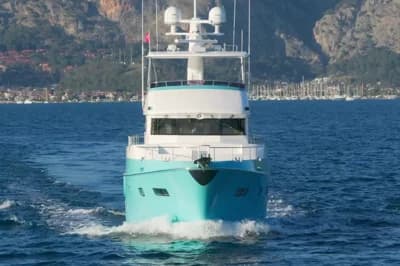

Model: Nordhavn 625

Length Overall (LOA): 64' 8" / 19.70 m

Length Waterline (LWL): 57' 3" / 17.45 m

Beam: 18' 0" / 5.49 m

Draft: 6' 8" / 2.02 m

Displacement: Approx. 138,000 lbs / 62.6 metric tons

Fuel Capacity: Approx. 2,250 US gallons / 8,517 liters

Fresh Water Capacity: Approx. 600 US gallons / 2,271 liters

Holding Tank Capacity: Approx. 120 US gallons / 454 liters

Gray Water Capacity: Approx. 110 US gallons / 416 liters

CONSTRUCTION

Hull & Superstructure:

Heavy-duty FRP construction

Vinylester resin used in the first three hull laminations

Foam-cored cabin sides and horizontal deck structures

Vacuum-bagged / infused flybridge deck and arch

Structural bulkheads constructed using approved closed-cell PVC foam

Reinforced deck-to-hull joint with 3M 5200, fiberglass laminates, and mechanical stainless-steel fastening

Six full-length longitudinal hull stringers port and starboard

Composite structural flooring in saloon, pilothouse, and forward engine-room bulkhead areas

Approx. 16,400 lbs / 7.44 tonnes of lead ballast

FRP engine-room flooring with molded non-skid surface

No timber structural flooring in engine room

Exterior Finish:

Hull gelcoat: Arocoat

Superstructure gelcoat: Ferro Super Shield White

Contrasting molded non-skid surfaces

Black boot-top and flybridge stripes

Epoxy bottom coating

Three coats of Petit Trinidad antifouling

PROPULSION & MACHINERY

Main Engine:

John Deere (Rated output: 325 HP @ 2,200 RPM, M2 rating)

ZF ZFW325 transmission (Reduction ratio: 3.958:1)

Dual 24V / 190A large-case alternators for house-bank charging

Deluxe engine instrumentation: Oil pressure, Coolant temperature, Voltage, RPM, Engine hour meter, Audible/visual alarms, PowerView display

Mathers electronic engine controls

Fernstrum keel/grid cooling system

Propeller & Shaft:

4-blade bronze propeller (Approx. 42" diameter)

3" A22HS propeller shaft with SAE shaft taper

Spurs line cutter

FRP stern tube with rubber cutless bearings

PSS dripless shaft seal with dedicated raw-water cooling

Fuel Filtration:

Racor Duplex 75-900 / 75-900FGX2 primary fuel filtration

Additional engine-mounted fuel filter

Vacuum gauges fitted to Racor filtration systems

Dry Exhaust System:

6" stainless-steel dry exhaust with stainless-steel flexible section

Harco in-line muffler

Exhaust routed through upper stack

Exhaust drain provision for periods when yacht is unattended

Isolation-mounted components

Full exhaust system insulated with custom fire-resistant exhaust blankets

AUXILIARY / WING ENGINE

John Deere Diesel auxiliary / wing engine (100 HP @ 2,400 RPM)

24V electrical system

ZF 631V V-drive transmission (Reduction ratio: 2.477:1)

Morse mechanical controls

GENERATOR

Northern Lights M844L 20 kW (Single-phase, 1,800 RPM)

24V starting system with two Group 31 starting batteries

Gen-Sep exhaust system

Centek waterlift muffler

Remote generator control panel located in pilothouse

THRUSTERS

Side-Power bow thruster (15 HP / 24V, 12" tunnel)

Side-Power stern thruster (15 HP / 24V, 12" tunnel)

Thruster controls provided at: Pilothouse, Flybridge, Aft cockpit control station, Starboard Portuguese Bridge wing station

STEERING SYSTEM

Hypro Marine ECS twin-cylinder powered steering system

Dual helm configuration with ECS 24V hydraulic power pack

Stainless-steel 18" steering wheels at Pilothouse and Flybridge

Emergency tiller and emergency steering bypass valve

Heavy-duty stainless-steel rudder stock and stainless-steel internal rudder structure

Bronze rudder carrier shoe

PSS rudder-stock sealing system

STABILIZATION

Humphree 24V electric fin stabilization system (designed for stabilization underway and at rest)

Twin-fin installation (Approx. 10.7 sq. ft. fins)

Humphree Active+ Yacht software

Servo units and control system with RCU 551 controller

Complete HCS installation and configuration package

FUEL SYSTEM

Four main FRP fuel tanks (Total capacity approx. 2,250 US gallons / 8,517 liters)

Approx. 31-gallon / 117-liter aluminum day/supply tank (Gravity-fed supply reservoir)

Separate feeds for: Main engine, Generator, Wing engine, Spare connection

Fuel return lines routed to supply reservoir

Fuel-water detection system with pilothouse warning indication

Fuel sight gauges

Walbro 24V fuel transfer pump and fuel transfer manifold

Racor 900 filtration incorporated into transfer / fuel-polishing circuit (polishing capability while transferring fuel between tanks)

Aeroquip fuel hoses and reusable fittings

Dual tank ventilation

Fuel-system components bonded into vessel grounding system

Vacuum gauges installed on all three Racor filters

FRESH WATER SYSTEM

Approx. 600 US gallon / 2,271 liter baffled FRP fresh-water tank with FDA-approved internal coating

Wema tank level monitoring

PEX hot and cold water plumbing

HeadHunter Mach 5 M5-115 fresh-water pressure pump

HeadHunter AVF-4 accumulator tank

40 US gallon / 151-liter water heater (220V operation & engine heat-exchanger heating capability)

Fresh-water washdown connections at: Aft deck, Foredeck, Engine room, Boat deck

Isolation valves provided for hot and cold services at sinks, showers, toilets, dishwasher, and other plumbing equipment

WATERMAKER

Dometic Sea Xchange SXII600Z semi-automated reverse-osmosis watermaker

Capacity: 600 gallons per day (240VAC)

Frame-mounted installation in lazarette

WASTE & GRAY WATER SYSTEM

Gray Water: Approx. 110-gallon / 416-liter gray-water tank (Galley sink, head sinks, showers, and washing machine drain to system) with Sealand Tank Watch 4 monitoring, Sealand T24 electric discharge pump, and manual Whale/Henderson backup diaphragm pump

Black Water: Approx. 120-gallon / 454-liter holding tank with Tecma 24V freshwater-flush toilets, Y-valve arrangement (holding tank / overboard where permitted), Sealand T24 electric holding-tank pump, manual backup pump, deck pump-out fitting, and Sealand Tank Watch 4 monitoring

BILGE SYSTEM

24V electric diaphragm bilge pump with Ultraswitch automatic control

Edson manual bilge pump operable from main salon

Three high-water emergency pumps (Rule 3700 GPH 24V pumps)

High-water alarm/control panel

ELECTRICAL SYSTEM

AC / DC: Central AC/DC electrical distribution panel; Emergency engine/house battery paralleling; Emergency generator/house battery paralleling; Individual engine and generator battery isolation; Color-coded tinned marine wiring throughout

Shore Power: SmartPlug 50A stainless-steel inlet (120/240V AC, 60Hz); SmartPlug 30A stainless-steel inlet (120V AC, 60Hz); Olsun isolation transformer; GFCI protection in galley and head outlets

Battery Banks: Eight Lifeline 8D batteries (255+ Ah each configured as two 24V house banks, approx. 1,020 Ah total); Dedicated main-engine starting battery bank; Dedicated generator starting batteries; Separate 12V pilothouse battery; 70A 24V-to-12V converter; Stainless-steel battery retaining systems

Charging / Inverters: 2 x 5,000W / 24V inverter-chargers; Remote inverter controls at pilothouse; Dual high-output engine alternators

Bonding / Lightning Protection: Comprehensive underwater bonding system; Multiple external zinc anodes; Dedicated lightning ground 2 grounding cable; Forespar lightning wand

AIR CONDITIONING & CLIMATE

Dometic tempered-water air-conditioning system

Integrated heating capability

Central marine climate-control arrangement

FIRE & SAFETY SYSTEMS

Sea-Fire FD1300M automatic fire suppression system in engine room with automatic shutdown interface for: Main engine, Generator, Engine-room blowers, and manual pull cable/alarm

Sea-Fire FD1050 system in lazarette

Sea-Fire FD900M suppression system in forward bilge

Seven Kidde combination smoke / carbon-monoxide alarms throughout accommodation areas

ENGINE ROOM & TECHNICAL SPACES

White FRP non-skid engine-room flooring and white finished machinery space

Technitron or equivalent fire-resistant acoustic insulation with Pyrotek-type protective lining

Powered engine-room ventilation and powered lazarette ventilation

Dometic upper-stack exhaust blowers

Multifan engine-room intake fans with speed controls; Dayton lazarette intake/exhaust fans; Ventilation dampers

DSG watertight machinery-space doors (viewing port in main engine-room door)

Central oil-change system hard-plumbed to: Main engine, Wing engine, Generator

GALLEY

Fisher & Paykel 32" refrigerator/freezer with integrated teak cabinet doors & built-in icemaker

Fisher & Paykel 30" four-zone induction cooktop

Fisher & Paykel 30" nine-function self-cleaning oven

Fisher & Paykel over-range microwave

GE 15" trash compactor

Bosch 800 Series 18" built-in dishwasher

Kohler double stainless-steel galley sink with Grohe faucet

Solid-surface countertops & tile flooring

Satin-finished teak cabinetry

Garbage disposal with three-way discharge arrangement (overboard where permitted or to gray-water tank)

MAIN SALON

Teak or cherry plank flooring with micro-groove detail

Horizontal-grain teak cabinetry and paneling with satin-varnished joinery

Teak/cherry dining table

Built-in settee with UltraLeather upholstery

Removable padded Majilite overhead panels

Teak window valances and air-conditioning soffits

Two Ekornes Stressless Consul leather chairs

GE Wine Center

Provision for two bar stools

MASTER STATEROOM

Queen-size berth

Teak/cherry plank flooring

Horizontal teak cabinetry and paneling with satin-varnished joinery

Teak countertops

Removable padded overhead panels

Integrated storage and lockers

MASTER HEAD / SHOWER

Solid-surface shower floor and seat with dual shower heads and mixers

Frameless glass shower door

Solid-surface vanity countertops & tile flooring

Grohe fittings & stainless-steel towel rails

Powered exhaust ventilation

Teak cabinetry

FORWARD GUEST STATEROOM

Queen-size berth

Teak/cherry plank flooring

Teak cabinetry and paneling with satin-varnished joinery

Bookshelves & teak countertops

Desk with swing-out UltraLeather-covered chair

Reading lights & integrated storage

PILOTHOUSE GUEST CABIN

Dedicated guest / captain's cabin

Teak/cherry plank flooring & horizontal teak paneling

Foam mattress

Removable overhead panels & integrated locker storage

PILOTHOUSE

Teak/cherry plank flooring & horizontal teak cabinetry

Black Formica navigation console and countertops

Teak table & UltraLeather seating

LED chart light & ventilated teak electronics-console louvers

Dedicated chart table with drawers and storage

Stidd 500N-200-X2 Slimline helm chair

Ritchie 4.5" magnetic compass

UTILITY / LAUNDRY ROOM

Dedicated utility room with port-side workbench

Lonseal Loncoin II flooring

White Formica cabinetry with teak trim

Bosch washing machine & Bosch ventless condensing dryer

Summit 24" front-loading freezer

Integrated locker storage

INTERIOR JOINERY

MO-A-Bi Cherry Interior selected (Cherry veneer cabinetry and interior paneling)

Nordhavn 59-style square moldings & satin-varnished joinery

Soft-close stainless-steel drawer slides & push-button cabinet/drawer latches

Lightweight cored interior doors with rubber door seals for improved sound isolation

Mobella McCoy Star Square door hardware

Cedar-lined hanging lockers with automatic 24V lighting

Magnetic catches fitted to interior doors

LIGHTING

Warm-white 24V LED overhead lighting throughout (Approx. 70 main interior overhead lights)

Exterior LED courtesy lighting, cockpit, and exterior deck lights

Dedicated engine-room LED machinery lighting

Flybridge arch lights

Hella NaviLED Pro navigation lights

Owner’s cabin and guest cabin reading lights

Vanity lighting & hanging-locker lighting

Deck floodlights

DECK EQUIPMENT & HARDWARE

Ground Tackle:

Maxwell VWC 3500 24V windlass with 1/2" HT chainwheel

400 ft / 122 m of 1/2" high-test anchor chain & Maxwell chain stopper

170 lb Rocna anchor

Double bow roller arrangement (secondary roller suitable for light anchor or mooring line)

Additional secondary deck pipe

18" chain-locker shelf with raised lip for secondary rode

Mooring Equipment:

Heavy-duty stainless-steel mooring chocks and cleats

Recessed transom cleat/chock arrangement & recessed cockpit-side mooring fittings

Amidships stainless-steel cleats

Four stainless-steel bow bollards & two 12" stainless-steel bow cleats

Two pop-up cleats on swim platform

TENDER HANDLING

Steelhead Esprit hydraulic davit (Rated capacity: 1,500 lbs / 680 kg, Approx. 12 ft extension)

Four hydraulic functions: Luffing, Winching, Telescoping, Rotation

24V hydraulic power unit

AFT COCKPIT

FRP wet-bar / service console with stainless-steel sink and faucet

Electri-Chef 4400 electric BBQ

Large lazarette hatch with gas struts

Scandvik recessed cockpit shower

Dedicated aft control station featuring: Mathers engine control, Bow/stern thruster jog controls, Windlass control

PORTUGUESE BRIDGE

Built-in storage locker

Starboard wing control station featuring: Mathers engine control, Bow/stern thruster jog controls, Windlass control

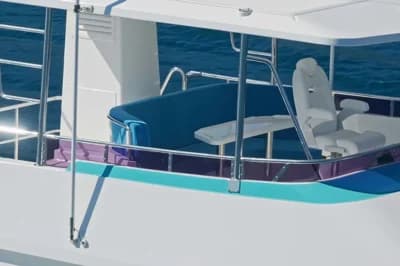

FLYBRIDGE

Mathers engine controls & stainless-steel steering wheel

Engine instrumentation/control panel, horn control, and windlass control

FRP settee & FRP table with white marine-grade vinyl cushions

Pompanette helm chair

Stainless-steel ladder with FRP steps to boat deck

Stainless-steel safety rails

Forward starboard settee

FRP hardtop with stainless-steel supports & radar/electronics mounting platform

Integrated overhead lighting & FRP electronics/exhaust stack

WINDOWS, DOORS & HATCHES

Frameless bonded wheelhouse and saloon windows

Large rectangular hull windows in owner’s cabin, guest cabin, and galley

Stainless-steel round ports

Welded-aluminum Dutch pilothouse doors & welded-aluminum glazed saloon Dutch door

Inboard-hinged transom door

Lewmar Ocean foredeck hatch & Freeman chain-locker hatch

Lewmar skylight over master vanity

Oceanair screens

Four 24V two-speed pantograph windshield wipers with integrated washer system

EXTERIOR & SWIM PLATFORM

Extended FRP swim platform with stainless-steel telescoping swim ladder

Four removable U-shaped stainless-steel swim-platform safety rails

Two additional L-shaped stainless-steel handrails at stern

Stainless-steel lazarette access step & lock fitted to lazarette hatch

Foredeck seating with closed-cell foam cushions

HORN & NAVIGATION SAFETY

Kahlenberg D0A dual air horn

Dedicated compressor and air tank

24V solenoid valve

ELECTRONICS

Factory electronics package supplied according to the Alcom Marine electronics package / quotation

Radar/electronics mounting provisions integrated into flybridge hardtop and stack

Dedicated conduits installed for future electronics and wiring runs between:

Mast / arch and pilothouse

Engine room and pilothouse

Salon overhead and engine room
