Welcome on board M.Y. Trafalgar
Escape to a world of Classic Luxury
Classic lines, luxury interior & over 50 years of history

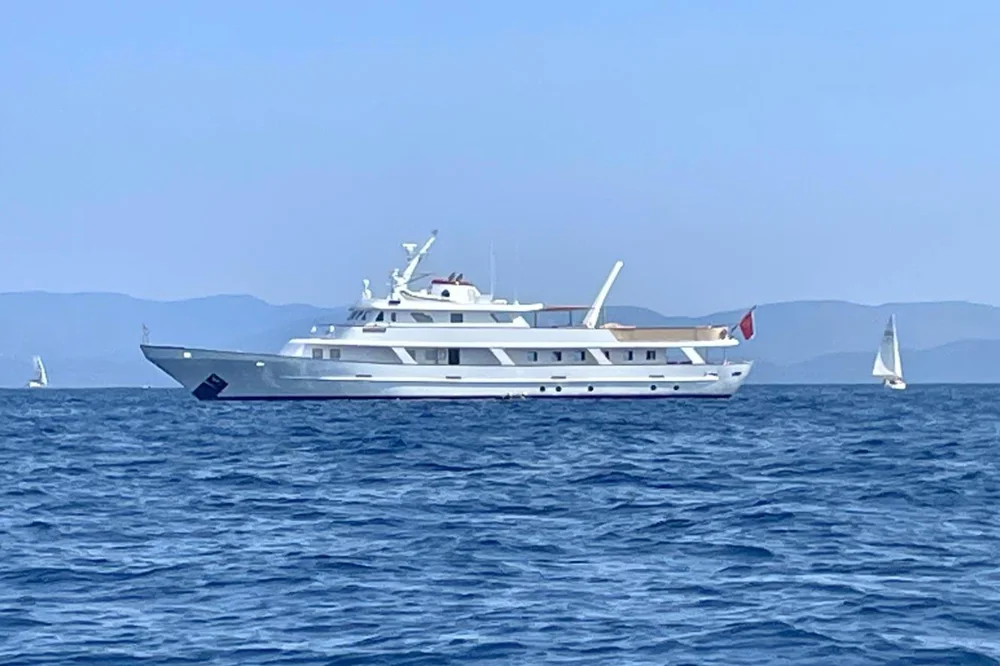

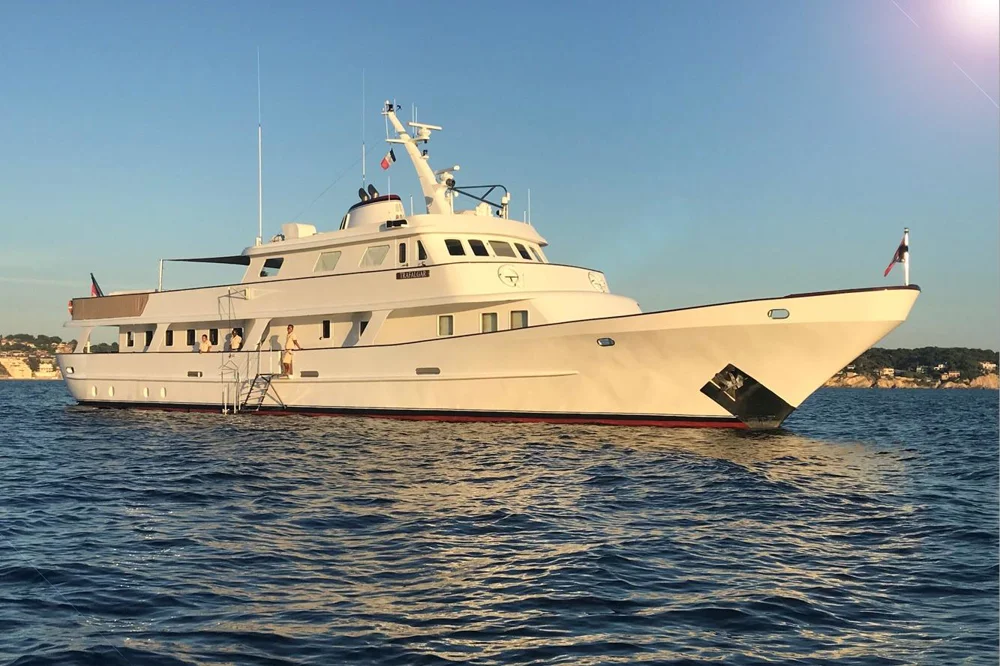

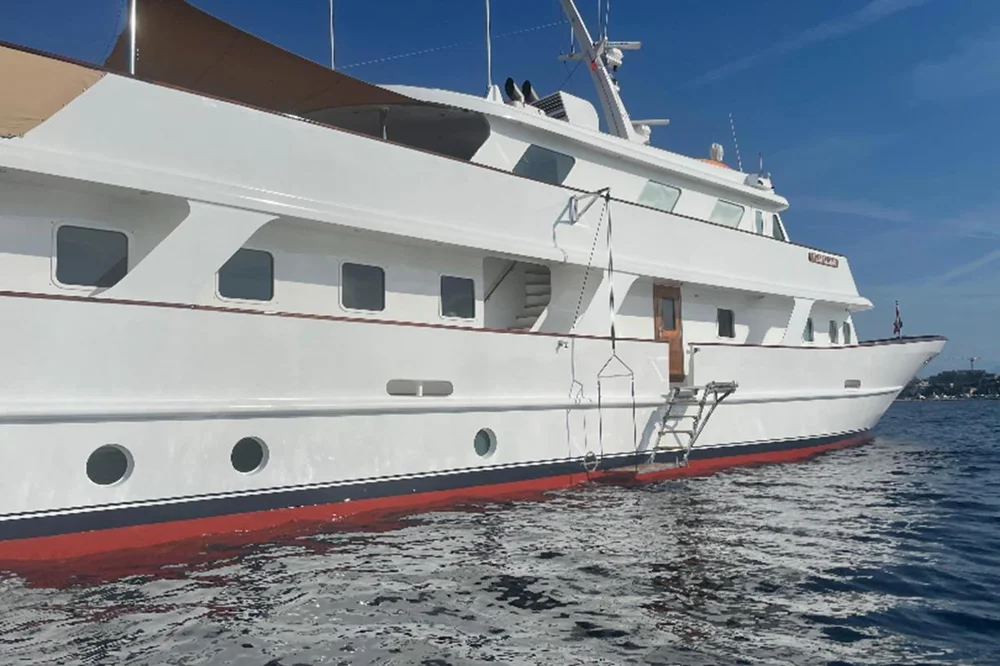

This iconic 40m displacement yacht was built in 1975 and run successfully for charter before being
extensively re-fitted and rebuilt in the United Kingdom then relaunched in 2016.

Over the years, this Iconic Motor Yacht, has welcomed many guests,
crossed miles of open water, held some amazing parties and even graced
the "silver screen"... Yes, she was a Bond Girl!

M.Y. Trafalgar (ex Yildiz 10 & Moonmaiden II) underwent a full refit over 3 years from 2016, and has been enjoyed by her current owner since, using her Privately. She is again on the market, following an extensive work list, and is now being sold with Cook Islands Commercial Register should the new owner wish to charter her for others to experience and enjoy.

She offers accommodation for 10, with full width Master double aft, twin port, double starboard, double VIP midships with the owners suite on the main deck.

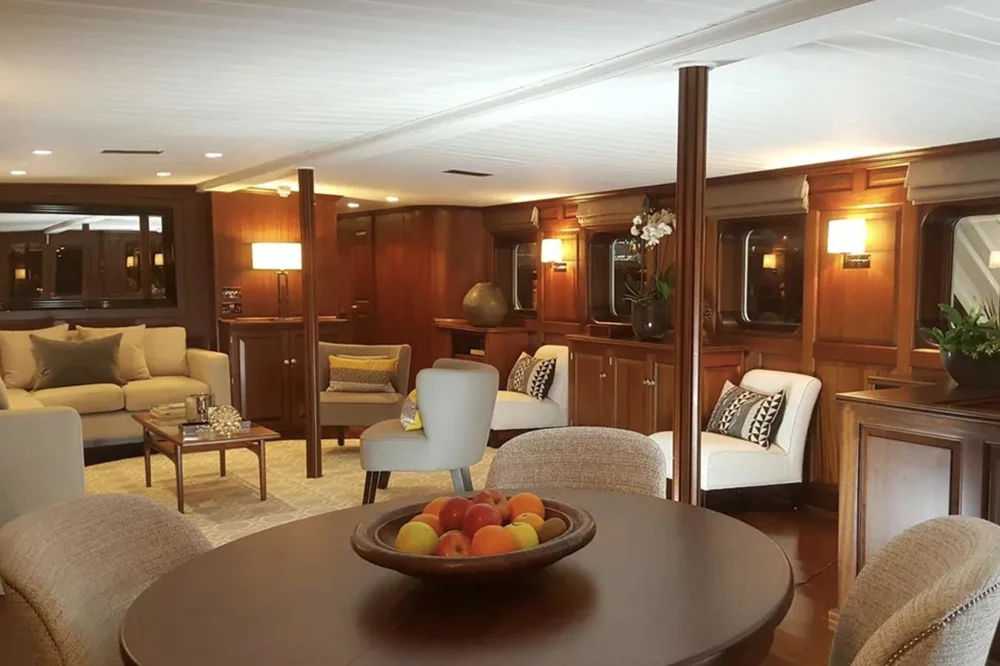

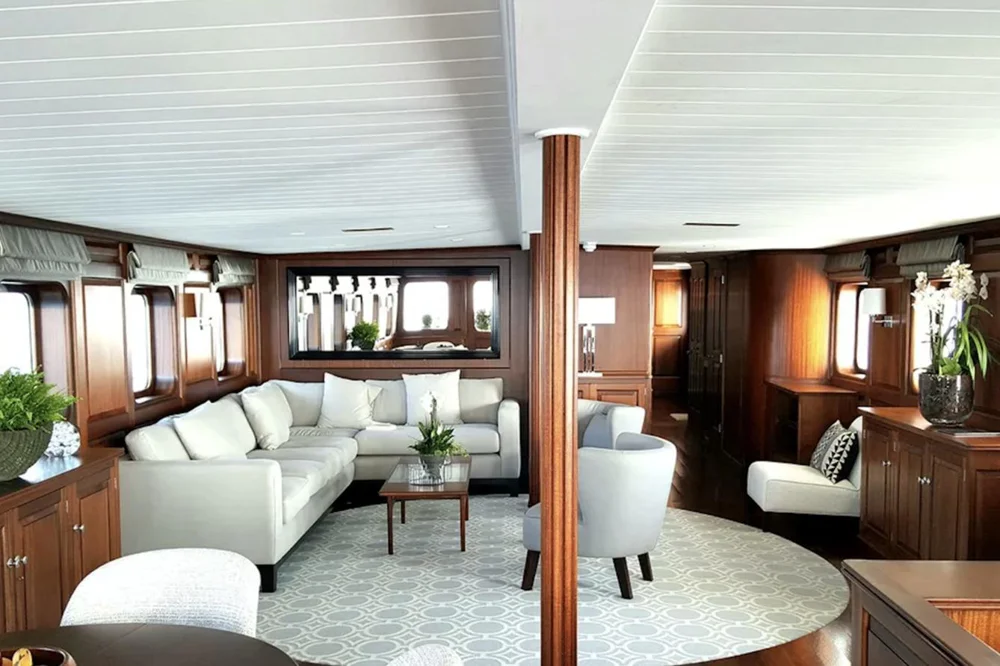

There are 3 dinning areas inside and out, and a sheltered outdoor lounge.

CONSTRUCTION
Hull/Superstructure: Steel / Steel
Deck material: Teak

CLASSIFICATION & CERTIFICATIONS
Classification Society: without classification
MCA: No
ISM: No
ISPS: No

PERFORMANCE
Cruising Speed: 10.0 knots
Maximum Speed: 12.0 knots
Fuel consumption at cruising speed: 100.00 (L/HR)
Range (nm): 3500nm

TANKAGE
Fuel: 38,000 litres
Fresh water: 21,000 litres
Grey water: 750 litres
Black water: 750 litres

MACHINERY
Engines: 2 x 12 cylinder 600 hp Deutz diesels
Engine hours: Port: 5,237, Stbd: 5,375 (since 2007 rebuild) (16.09.2022)
Generators: Kohler 100Kva (2009), Iveco 75Kva
Generator hours: Kohler: 5,785, Iveco: 47,576 (since new) (16.09.2022)

PROPULSION & STEERING
Gearbox: 2 x Reintjes
Rudder control: Simrad

STABILISERS
Stabilisers at anchor: No
Stabilisers underway: Yes
Stabilisers details: Naiad Hydraulic fins

MECHANICAL
Stabilisers: Naiad hydraulic fins with Multisea II control
Fuel flters: Racor
Air compressors: 2 x ERVOR with 2 x 100L tanks for engine start
Air conditioning: Compact Clima unit in each area
Water Makers: 2 x Cathelco 200l/hr
Sewage system: Tecnicomar Ecomar 16

COMMUNICATION & NAVIGATION EQUIPMENT
Navigation Equipment:
Radar: FR-7062
Echosounder: Raymarine ST60
Wind display: Raymarine ST60+
GPS: Raymarine A65, Furuno GP32
Rudder control: Simrad FU50
Rudder angle display: Simrad RI35
Autopilot: Simrad AP50
Electronic Compass: Simrad IS80
Satellite Compass: Furuno
Magnetic Compass: John Lilley & Gillie Ltd
Communications Equipment:
VHF: Radio Ocean RO4800
Handheld Radios: Simrad TC50 GMDSS Radio
Navtex: ICS Nav5
Inmarsat: Furuno Mini-C
GMDSS Control Panel: ICS
MF/HF Tranceiver: ICOM

ENTERTAINMENT
Speakers throughout main saloon, aft deck and upper deck.
Sony Bravia TV in master stateroom with Apple TV

DOMESTIC APPLIANCES, EQUIPMENT & LAUNDRY
Galley and pantry (all new 2016):
2 x Hotpoint 4-ring ceramic hobs
1 x Double galley extractor
2 x Bosch fan oven
1 x Microwave convection oven
1 x Under counter fridge
1 x Under counter freezer
1 x Hotpoint full height fridge
1 x Hotpoint full height freezer
1 x Hotpoint dishwasher
1 x Sink in galley
1 x Sink in Pantry
Laundry:
2 x LG Washing machines
2 x Bosch Series 4 driers
1 x Sink

ACCOMMODATION
Headroom Staterooms: 195.00 cm
Headroom Main Deck: 195.00 cm
Headroom Skylounge: 195.00 cm

DECK
Ground tackle:
Anchors: 2
Chain: 2 x 140m
Crane: Rated to 1.5 tonnes (2016)
Passerelle: Manual operation

PAINT JOB: Full re-paint in 2016

TENDER & TOYS
Novurania EQ 540 tender - 10 man capacity
3.5m Walker Bay tender with 25hp outboard
Yamaha jet-ski
Note: Subject to change and/or negotiation during the buying process.

SAFETY & SECURITY
Fire systems:
ARC Fire Alarm Control System, repeater in Crew Mess
Handheld fire extinguishers in all areas
FM200 in Engine Room
CCTV aft and in Engine Room

REFIT LOG
2012 – 2016 refit, Southampton UK
Ultrasound hull
Plate, tank top and frame repairs where necessary
Remove wasted steel under capping rails and replace with stainless steel section
Install new black and grey water tanks
Install new bilge, fire line, fuel system and black and grey water pipework
Paint bilges and engine room
Install new crane
Install new bilge alarm system
Install 2 new water makers
Install new fire detection system including new fire cylinder
Install fuel tank sight gauges
Galvanise anchors and chain
Replace cutlass bearings
Replace scupper pipework
Replace engine room floor plates
Renew all deck hatches
Install new shore power
Install new engine room extraction and air intake dampers
Rewire bridge and cabins
Remove existing crew quarters and rebuild
Remove existing galley and rebuild
Remove existing laundry room and rebuild
New generator exhausts
Service fuel injectors
Replace intercoolers
Re-lag engine exhausts
Install new bellows, manifolds and other fttings
Various engine and generator service works
Remove and service anchor winches
Balance props and coat in prop speed
Spin shafts and lathe couplings
Align shafts
Lay new teak decks
Install new deck heads
Install new exterior lighting
Paint hull and superstructure
Strip down and varnish all interior wood work
Winter 2016 – 2017
Replace main engine heads
Replace exterior furniture and tender covers
Replace air conditioning and water pumps
Install new side boarding ladder
Winter 2017 - 2018
Replace injector pump
Service Iveco generator
Service heat exchangers and pumps
Replace sun deck awning and dodgers
Paint sun deck superstructure
Winter 2018 – 2019:
Install new main engines exhaust insulation
Modify exhaust brackets
Remove inboard/outboard engine to main tender and service
Install new engine room extraction vents
New covers for crane and deck furniture
Rebuild fire lines

Currently lying: Valencia

To arrange a private viewing, please contact Smart Boat Sales on +44 7985 154373 where our team will be pleased to assist with any queries.
