DescriptionThis is a new widebeam shell now ready for fitout by Jonathan Wilson of Sheffield. Renown for his build quality, this shell was constructed in Poland from the highest quality chosen German steel. The shell is fully shotblast following welding and is now primed and awaiting sale so you the buyer can chose your interior finish and specification. The price is to a basic specification that can be added to to a buyers desire.

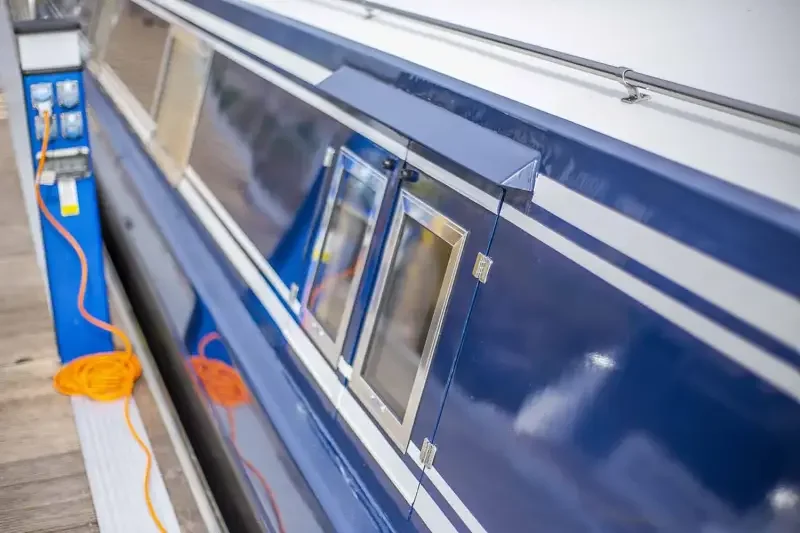

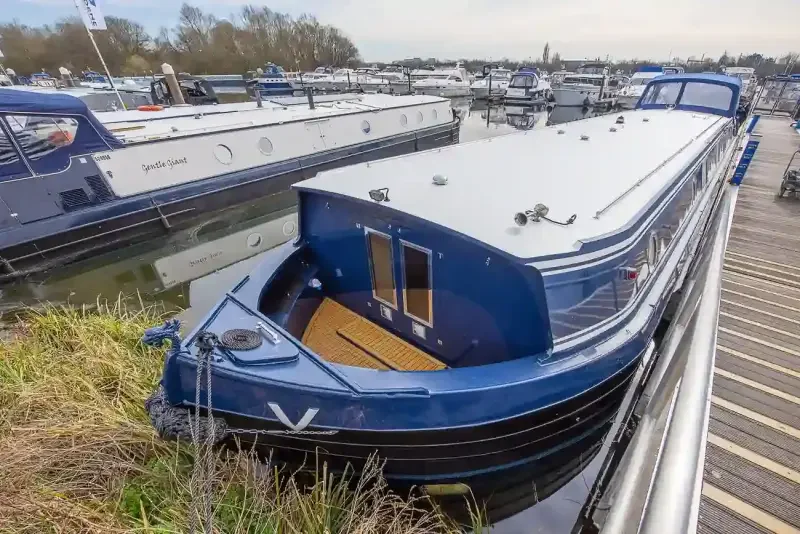

This is a new widebeam shell now ready for fitout by Jonathan Wilson of Sheffield. Renown for his build quality, this shell was constructed in Poland from the highest quality chosen German steel. The shell is fully shotblast following welding and is now primed and awaiting sale so you the buyer can chose your interior finish and specification. The price is to a basic specification that can be added to to a buyers desire. All windows are double glazed, bow and stern doors are of steel manufacture. the rear deck is raised some 9" offering exceptional visibility to the helm, from where you can see the bow with ease and which in this price offered will be of tiller design offering maximum manoeuvrability and easy usage even by a person new to boating. The service Tingdene offer includes a days professional training on handover included with the purchase at one of Tingdene's wide beam suitable marinas. The photographs are of a previously suppled 65 and represent what can be offered to the discerning purchaser who desires only the best quality and service throughout the build and delivery proces.

Standard features

GENERAL SPECIFICATION:

· 10mm base/6mm hull / 5mm cabin sides / 5mm roof

4 ' x 3' skylight with interior blind

Additional framing to hull and topsides with additional internal brace giving strength to area around skylight

· Integral steel water tank – approx. 350 gallons

· Diesel tank – approx. 150 gallons

· Wrap-around stern with doors and seat lockers

· Front forepeak ballasting tank, two-side ballast trimming tanks

· Stern gas locker accommodates two gas bottles

· 50×12mm rubbing strakes

· Bollards, T-stud, fender fittings fore, sides and aft, central mooring ring, pair of fairleads

· 4x 4.5kg magnesium anodes fitted

· Integral roof handrails

· Chrome mushroom vents, plank and pole rack, tiller bar

· Steel front doors with double glazed windows

· Steel rear doors with sliding hatch

· 3’ side hatch doors with double glazed windows

· Double glazed windows: 5x 36”x21”, 4x 15” portholes

· 18mm water resistant plywood base flooring

· Interior fully battened and spray foam insulated

· Hull sides lined in “A” grade birch plywood painted in white

· Cabin sides and ceiling lined in wood to choice, maybe additional cost depending on woods

· All wooden bulkheads, and furniture made of blockboard

· Hardwood trims

PAINTWORK

· Hull with base plate sandblasted and primed using a two-pack epoxy system

· Bottom finished in a two-pack synthetic epoxy tar paint with Antifoul to waterline

· Hull above waterline finished in black polyurethane with anti fading UV filter

· Slip-resistant finish surface on all decks, roof and gunwales

· Cabin top finished in high-gloss automotive paint, 2 colours

ENGINE AND STEERING

· Beta, Barrus or Vetus 60hp 4 cylinders keel cooled engine, 45A & 175A alternators

· Flat bottom cooler with self-bleeding system

· 3-blade propeller

· Gland packing shaft seal

· Centaflex flexible coupling

· Dry exhaust

· Analogue diesel tank gauge

· Automatic bilge pump connected directly to Vetus AGM deep cycle engine starting battery

· Vetus 95kgf electric bow thruster, 200Ah Vetus AGM deep cycle batteries, Victron battery charger

SANITARY AND SEWAGE WATER

· 75 litres twin-coil calorifier with immersion heater

· Vetus hydrophore water pump with 19L accumulator tank

· Diaphragm shower pump

· Vetus pump-out toilet system with electric toilet and 215L waste holding tank

· Waste and water tank analogue gauges

HEATING AND GAS

· Webasto TT Evo 5 kW central heating system, programmable thermostat

· 3 modern style radiators

· Heated towel rail

· Gas regulator with manual changeover kit for 2 bottles,

· Alde gas leak detector

230V AC

· RCD Consumer Unit

· 16A landline socket

· 6 stainless steel double sockets, including 3 with USB charging ports

· 3000W/120A Inverter/Charger

· Galvanic Isolator

12V DC

· 660Ah Vetus AGM deep cycle leisure battery bank

· Manual battery switches for all battery banks

· Blue Sea main distribution panel

· Blue Sea water-resistant panels for LED tunnel light, LED navigation lights, horn and bilge pump

· Smart Battery Monitor

· Battery Protect

· 21-25 LED ceiling spotlights (depending on the size), stainless steel light switches

· Engine room light

· Provision for solar panels

· 12V cigarette lighter socket

· Mains hook up lead

MEDIA

· 2 TV sockets, UHF TV/FM aerial with signal strength booster



ACCOMODATION CAN BE ALTERED TO BUYERS DESIRES

BEDROOM

· Step to the foredeck with storage space

· 2 full height corner wardrobes

· Makeup desk with storage units

· Lift-up double bed 140x200cm, high-quality pocket sprung mattress

· Bedside tables

· 2 LED reading lights

· Full-height wardrobes by the partition wall

BATHROOM

· Vanity unit with basin situated on wooden countertop, storage below

· Water-flushed pump-out toilet, 215 L waste tank

· Rectangular shower, laminate wall panels

· Wall mirror and bathroom accessories

· LED lighting above the basin

· Mushroom vent extractor

SECOND BEDROOM

· Single bunk beds or double berth with mattresses with storage around

· Full height wardrobe

· Desk with LED light above

· 2 LED reading lights

LOUNGE

· TV cabinet with storage units

· Morso multifuel stove, twin wall Morso flue, tiled surround

GALLEY

· Handmade kitchen cabinets

· Wooden worktops

· Sink with drainer

· Integrated full-size fridge freezer (230V)

· Built-in gas cooker with oven & 4-burner hob (230V/LPG)

· Mushroom vent extractor

· Electric control cupboard

· Steps with storage to rear deck

INTERNAL/EXTERNAL FITTINGS & FIXTURES

· Chrome, stainless steel and brushed steel fittings

· White aluminium window blinds

· Laminated or carpet flooring throughout living space

· Tiled floor in the bathroom

· All cabinet hinges and drawer slides with soft-closing system

FURTHER OPTIONS AVAILABLE AS REQUIRED at ADDITTIONAL COST

- Aluminium anodes

- "Styrodur" underfloor insulation throughout

- Coach lines to topsides

- Hospital silencer (upgrade)

- Weatherproof external double socket

- Electric underfloor heating in the bathroom

- Blue Sea remotely controlled battery switches 3 pcs

- Boat entrance courtesy lights (4x)

- 1kW semi-flexible solar panels installed with Victron MPPT Smart Charge regulator

- 4G Wif-Fi internet system with router

- Fold up bunk or double bed with desk underneath in second bedroom

- 50" Smart LED TV

- Domestic type extractor hood (230V)

- Washing Machine, Dryer & Dishwasher (230V)

- Integrated microwave (230V)

- Wine cooler (230V)

- Aft Deck Canopy

- Cratch Cover & Frame
