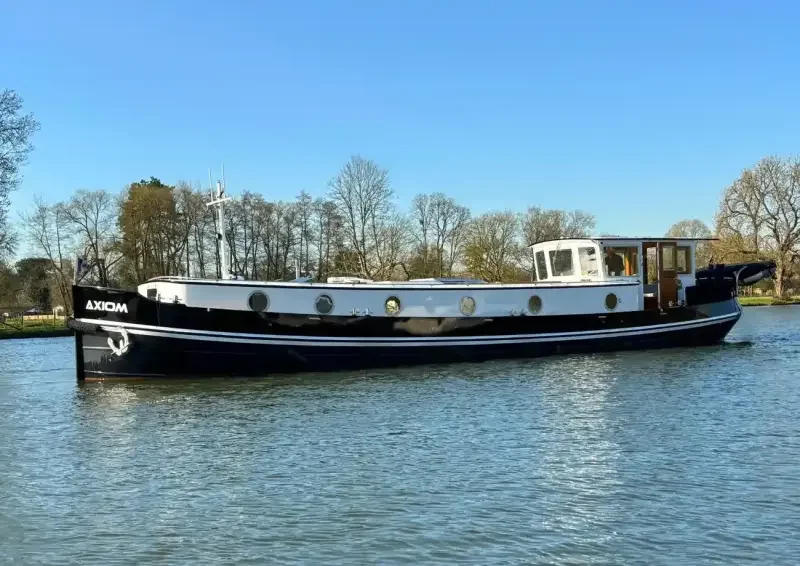

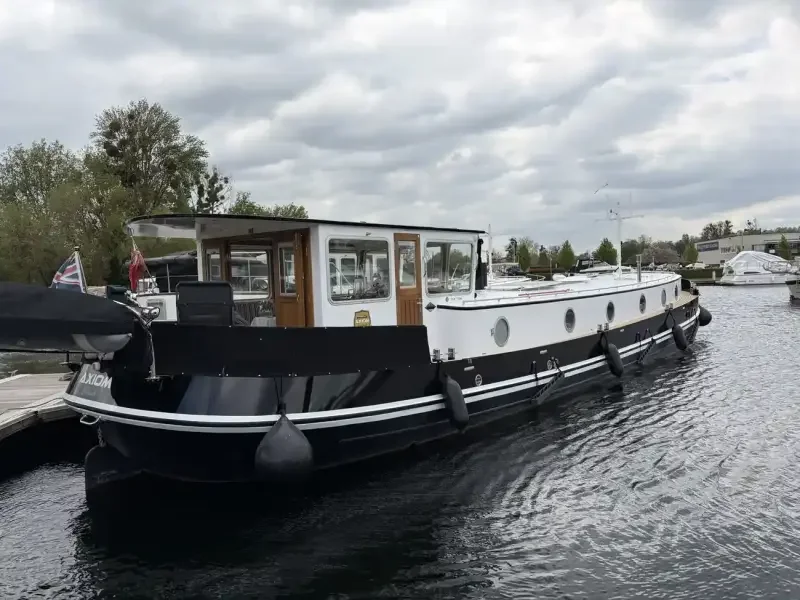

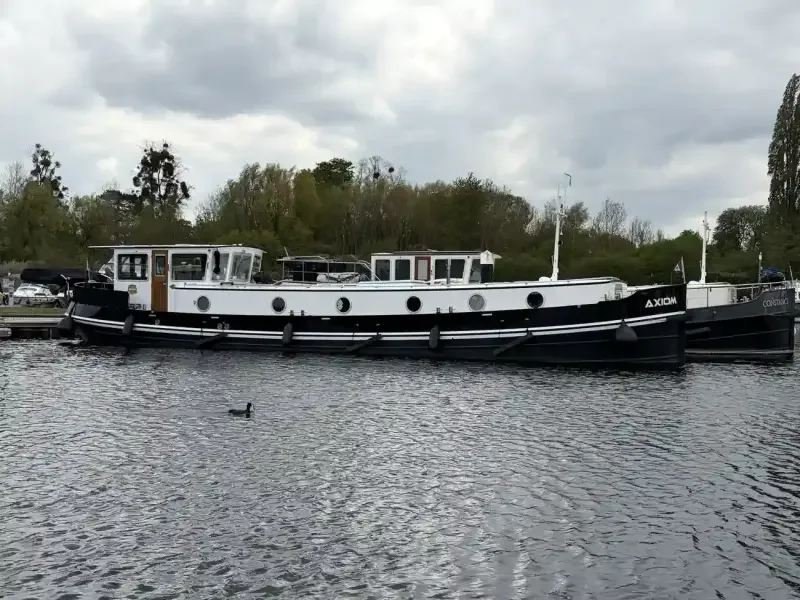

‘Axiom’ is a 2020 Piper 60M Dutch Barge, a superb British-built vessel designed for comfortable cruising and life aboard. She offers a modern, spacious interior filled with natural light from porthole windows and a large skylight. Her strong steel hull provides excellent stability across a range of waterways. Owned and meticulously maintained by one owner from new, she presents in near-new condition. A rare opportunity to acquire one of the highest-spec Piper 60M barges available, perfect for both adventure and relaxed living on the water.
Lying Afloat at Harleyford Marina - Berth can be sold with the vessel
- Engine: Vetus 140hp Inboard Diesel Engine Hours:297 Equipment:Hydraulic Thrusters, Generator & Air Con Berths:6 Last Engine Service:October 2025 Last Antifouled: Copper Coated when new Drive Type:Shaft Hull Type:Steel Boat Safety Certificate:Valid
Steelwork
• Standard - as per builders' specification • Shipbuilding Quality Grad A Steel plate according to EN10204 / 302 LRS • Shipbuilding plate blasted to SA 2.5 and primed by Dutch supplier • Spray foam insulation • 13mm keel plate • 8mm chines and hull sides • 6mm decks • 5mm superstructure • 1876L Water tank with level indicator • 1077L main propulsion fuel tank with level indicator • 854L black waste tank with level indicator • 16L Grey Tank (divertible to black tank) Additional build cost options
• 1371L auxiliary fuel tank with level indicator to support generator, central heating and Reflex stove/heater • Vetus 70L Hydraulic tank and controls for thrusters for the hydraulic anchor, windlass & steering • Extended wheelhouse roof • Additional stainless-steel bollards • Stainless-steel rubbing strips to mooring bollards • Toe steps to access cabin roof • Bases for davits to stern • Brackets for swivelling davits • Simpson high capacity swivelling davits 125Kg • Stainless steel eyelets to secure Z fenders x 12 • Stainless steel passerelle sockets x 4 Engineering
• Standard - as per builders' specification • Kabola pressure jet central heating boiler - serviced annually • 75L calorifier • 1Kw immersion heater • Heating via radiators • 3.5Kw Mastervolt isolation transformer • Automatic engine room fire suppression system • Mastervolt battery monitoring system • Twin alternators (See upgrade below) Additional build cost options
• Vetus Deutz 140 D-Line 4-cylinder engine (Upgraded from Beta 115) serviced annually (engine hours tbc) • Raw water cooling • Additional domestic high-capacity alternator upgrade - Mastervolt 130A Alternator • Hydraulic engineering fitout upgrade - including bow 160kgf and stern thrusters 95kgf, hydraulic anchor winch and steering • Kohler generator soundproofed & enclosed - Kohler 7Kw (wet Exhaust) (Upgraded from 5Kw) serviced annually (generator hours tbc) • Twin inverter charger combi - Mastervolt mass combi pro 2 x 3Kw (Upgraded from 1 inverter charger) • Wireless thermostat for central heating • Deck wash tap in engine room • Additional rear deck lighting • Side deck lighting - mounted into cabin sides and bow • Retro fitted upgrades • 2 x Mastervolt MLI Ultra Lithium Ion Batteries 12V / 6000KwH • Fitted September 2022 - these are the latest generation leisure batteries at a cost of -14,000 + fitting • Mastervolt Masterbus interface USB Exterior
• Standard - as per builders' specification • Stainless-steel handrails and bollards • Jotun approved external marine paint system • Double glazed & thermally broke windows to wheelhouse • Double glazed & thermally broke windows & portholes to cabin • Powered high / low painted mast with stainless-steel tabernacle • Front barge fender • Union 75Kg anchor & 50 metre's of 10mm chain • Navigation lights (port, starboard, stern, anchor, steaming) & headlight Additional build cost options
• Electric sliding sunroof, sunscreen & mozi screen • Wired for installation of 4/5g products. • Satellite / Freeview system - mast had twin port satellite panel with wiring to back of TV unit in salon and master cabin • Oyster satellite system - Oyster V585 • 10 x Solar panels - Mastervolt solar regulator, +SCM60 100w panels • 12 x 18- portholes - Vetus • Painted stripes & D-bar paint detail • Coppercoat anti-fouling • Flexiteek - bow, side decks and down sides of wheelhouse • Stainless-steel flagstaff for stern • Flag pole socket and stainless-steel flagstaff for bow • Chrome boathook brackets (2 pairs) • We supplied 4G Wifi & router to all areas of the boat • Eye plates for fenders on both sides • Extra grab handles on wheelhouse • Gang plank and brackets x 4 • Personally supplied items • Assorted fenders, warps & mooring stakes • Titan boat covers - Spray dodger & sliding roof cover with thermal blanket Wheelhouse
• Standard - as per builders' specification • Fixed steel wheelhouse • Removable table • Seating converts into a double bed • Access to engine room • RPI - Rudder position indicator • Engine panel & controls • Thruster controls • Manual engine room fire suppression switch • Fire extinguisher (manual) • Smoke alarm Additional build cost options
• Integral blinds to rear bi-fold doors (we supplied electric and manual plisse blinds to remainder of wheelhouse) • EDC throttle • Chart plotter - Simrad G09 chart plotter with GPS and Wifi • Charts - Navionics UK & Northern, Central and West Europe • Class B AIS System Simrad NAIS-500 system • Twin automatic / manual bilge pumps with alarm • Upholstery upgrade + additional cushions (spare set of seat covers for wheelhouse seating) • LED lights in wheelhouse • LED lights on stairs • Removed stair door / cover • Freezer in engine room - Vitrifigo VF65P Interior Fixings
Additional build cost options
• Door handle upgrade (approx. 80 in total) • Wifi router (fitted by Wifi on board) Windows
Additional build cost options
• Electric sliding roof, sunscreen & mozi screen • Mozi screen for all roof hatches • Bungs for all roof hatches • Shutters to master bedroom escape hatch Flooring
• Salon, bedroom, side cabin & galley all upgraded to Oak 130mm plank Galley
• Standard - as per builders' specification • Fitted with premium oak plywood shaker style doors • Composite granite worktops Additional build cost options
• Stainless-steel sink bowl • Undercounter fridge - Vitrifigo C180 larder fridge • Undercounter fridge - freezer - Vitrifigo DW180 Frost free • Splashback • Integrated kitchen waste bin • LED plinth lighting • Penguin water filtration to galley tap Additional supplied items
• Miele gas hob & cooker hood • Miele oven • Miele microwave • Miele slimline dishwasher • 2 x bar stools Saloon
• Standard - as per builders' specification • Underfloor roller storage system • Smoke alarm & Co2 detector • Fire Extinguisher (manual) Additional build cost options
• Refleks 2000KT diesel stove • Port side unit • Bulkhead cupboard - power points & shaker doors • Air conditioning - 12,000 BTU with diverter valve between master bedroom and salon • Personally supplied items • Samsung smartTV • Sonos sound system to all areas - by separate negotiation • Fully sprung chaise bed settee - Willow & Hall - by separate negotiation • Sisal rug Coat Cupboard • Standard - as per builders' specification Additional build cost options
• Vitrifigo safe • Power point (i.e. for recharging cordless vacuum cleaner) Side Cabin
• Standard - as per builders' specification • Control panels for: • Water heater • Central heating • 12V panel • Kohler generator • Mastervolt easy view control panel • Auxiliary fuel gauge • Water gauge • Waste black tank gauge • Single berth overhead lighting • Central heating radiator Additional build cost options
• Redesign of the cabin layout with additional storage • 2 x single bed bases & mattress' - 1 desk height with cupboard and fitting for washing machine (we supplied) • Personally supplied items • AEG Washer / Dryer 7000 series Day Loo
• Standard - as per builders' specification • Recessed wash hand basin • Vanity unit • Shower • Tecma toilet • Towel rail Additional build cost options
• Toilet Tecma silence plus second generation control unit • Shower curtain • Bathroom fittings (Personally supplied) • Mirror Master Cabin
• Standard - as per builders' specification • King size bed • Cupboards and drawers to port and starboard • Full height wardrobe • Full length mirror • Marine Aircon • TV Point • Central heating radiator • Fire Extinguisher (manual) Additional build cost options
• Oak unit to bulkhead - shallow unit, 3 cupboards - radiator moved to beneath bed • Air conditioning - see salon • Headboard • Anti-moisture airmat T • Fan - Carframo fan • Personally supplied items • Vi-spring king size mattress Master en-suite • Standard - as per builders' specification • Walk in shower room with glass screen • Thermostatic shower valve Additional build cost options
• Vanity unit - top mounted basin • Toilet - Tecma Silence Plus 2nd Generation (upgraded from standard) • Towel rail - dual control electric or via central heating (upgraded size and to dual supply) • Mirror fitted to inside of bathroom door • Personally supplied items • Mirror / vanity unit - incorporating light and shaver point Additional Items

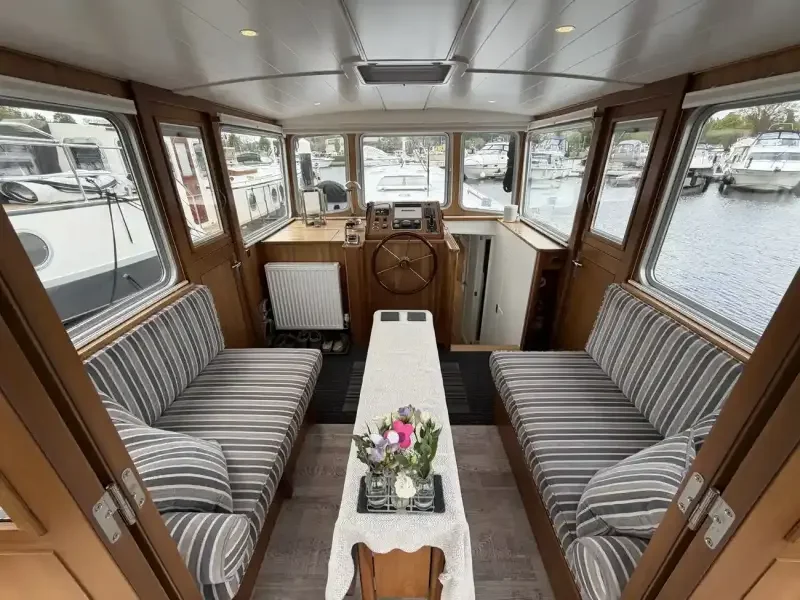

• Various spares • 2 x 16amp shore power plug to a 13amp euro socket lead • Boarding step • Touch-up paints, varnish & wood stain • Fuel - both tanks on white diesel • All taps, shower and bathroom fittings are upgrades above standard Piper specification • Dinghy - Zodiac 2.7m airdeck & boat cover - by separate negotiation • Torqueedo electric outboard - by separate negotiation • SENA SPH 10 Universal intercom Accommodations • Wheelhouse With access to both sides of the deck via side doors, the wheelhouse boasts a central helm, twin bench seats which convert to a double berth and Sapele bi-fold doors allowing the space to flow onto the rear deck. The entire wheelhouse is surrounded by double glazed Vetus glazing, complete with integrated blinds to offer complete privacy. • Mid-Cabin Stepping down 4 steps from the wheelhouse, to starboard is the guest mid-cabin which can be used as two single berths or an office with a convertible desk. Opposite the mid-cabin across the corridor is the day-loo allowing guests to have their own facilities while staying aboard. • Galley Moving forward, to starboard you are greeted by a very grand galley which comes complete with composite granite worktops, Miele appliances throughout, twin large Vitrifigo fridge freezers, sit up breakfast bar, ambient lighting and much more. • Saloon As you progress forward of the galley, you move into the saloon which is the Utopia of the vessel. Here you have a large L-Shaped, diesel fired burner ensuring you a warm, comfortable spot to make you feel like you are at home. Each side are 3 large port holes and up top is a large electric opening skylight, flooding the space with natural light, all port holes and skylight have blinds to ensure complete privacy. • Master Cabin Further into the bow of the vessel takes you into the extensive master cabin suite. Located centrally is a large king size bed fit for royalty. This cabin also boasts a marine air-con system, central heating, TV point and en-suite complete with a large walk-in shower, toilet & wash basin.
“In this case we are acting as Brokers only; The Vendor is not selling in the course of a business. Whilst every care has been taken in their preparation, the correctness of these particulars is not guaranteed. The particulars are intended only as a guide and they do not constitute a term of any contract. A prospective buyer is strongly advised to check the particulars and where appropriate at his own expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which, if conducted by us, shall not imply any liability on our part”.
Details
HerstellerPiper Boats
Modell60 DB
Jahr (Bau / Refit)2020
Länge18,3m
Motoren1
Gesamtleistung140 hp
Spezifikationen
Abmessungen
Länge über alles18,3m
Antrieb
Motor 1
MotorherstellerVetus
Motorstunden297
AntriebstypWellenantrieb
KraftstofftypDiesel
Leistung140 hp
